XC90 AWD L6-2.9L Turbo VIN 91 B6294T (2004)
Body Control Module: Service and Repair
Door Module (Power Windows, Power Mirrors, Child Locks, Central Locking), Front Doors
Door module (power windows, power mirrors, child locks, central locking), front doors
Replacing the driver door module (DDM) and passenger door module (PDM)
Caution! New software can only be ordered when the control module is installed in the car. VIDA reads off the new control module identity
which is required to order the correct software.
Always check that the control module and control module box connectors do not have bent or damaged terminals or socket/sleeves. This may have been
the cause of the fault.
Removing the control module
This method of removal applies to both the driver door module (DDM) and the passenger door module (PDM).

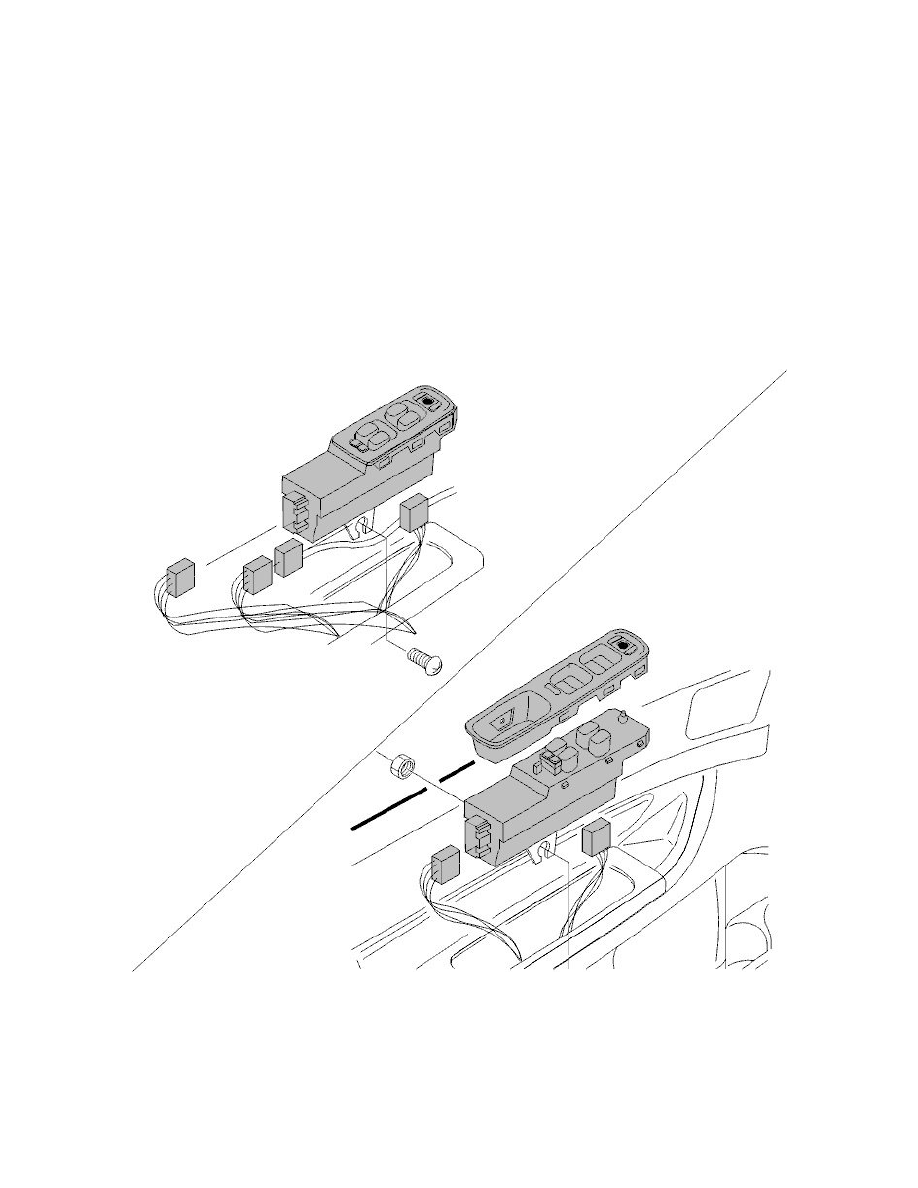

The illustration shows the driver door module (DDM).
Remove the door panel
Remove the nut and screw holding the door module
Disconnect the connectors
Pry up the rear edge of the door module. Pull the door module backwards and upwards. Remove the door module from its mounting on the door
Press up the door module.
Remove the upper panel.
