XC90 AWD L6-2.9L Turbo VIN 91 B6294T (2004)
Note! Check that the control module's connectors are intact.
Installing the driver door module (DDM)
Install the upper panel.
Position the control module in the hole on the door panel.
Check that the lower mounting for the control module is correctly located in the support on the door panel.
Press the control module into place.
the nut and screw
the door panel, see Replacing the front door side panel See: Body and Frame/Doors, Hood and Trunk/Doors/Front Door/Front Door Panel/Service

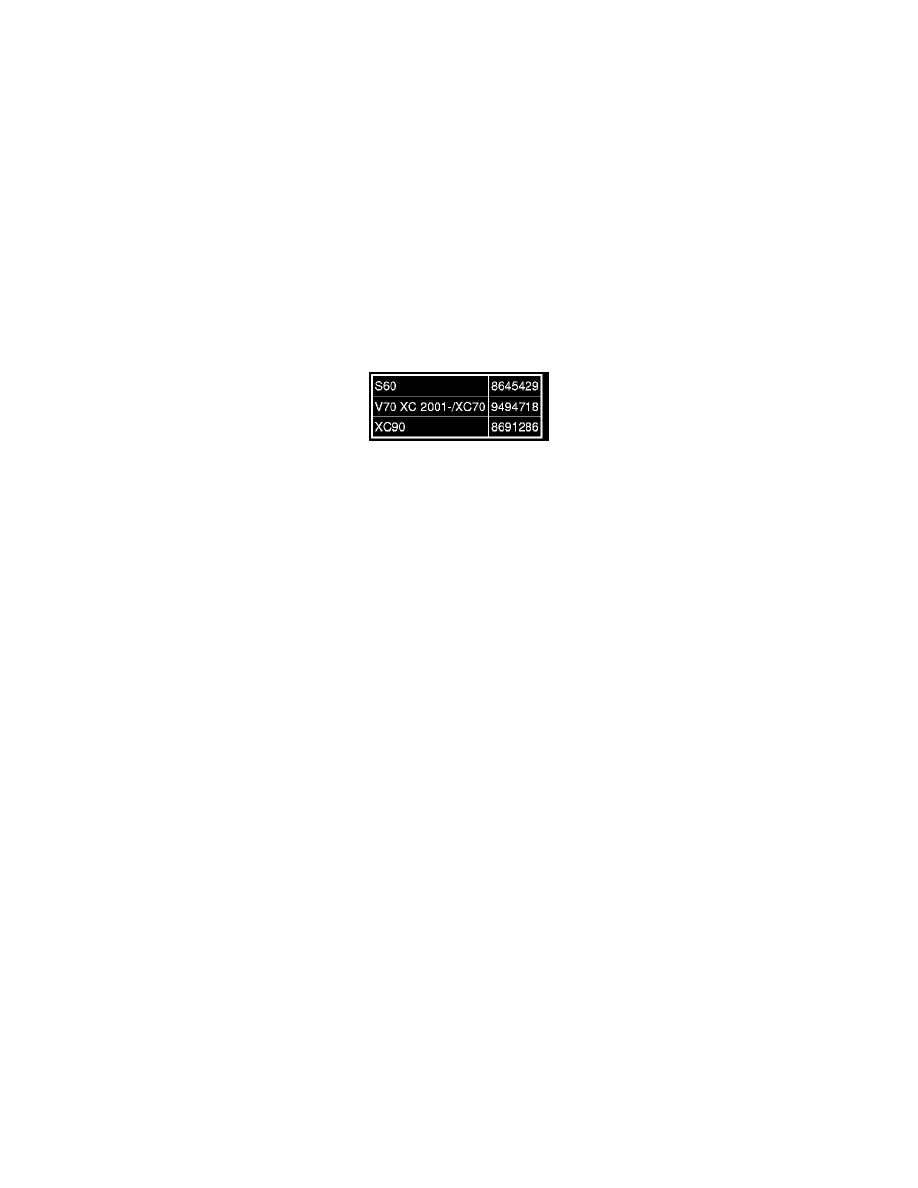

Order software for the driver door module (DDM) according to the table below.
Initialize the window position in the communication input.
