XC90 AWD L6-2.9L Turbo VIN 91 B6294T (2004)

Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Body Control Module > Component Information > Service and Repair > Central Electrical Unit Engine Compartment > Page 797

Page 12
background image

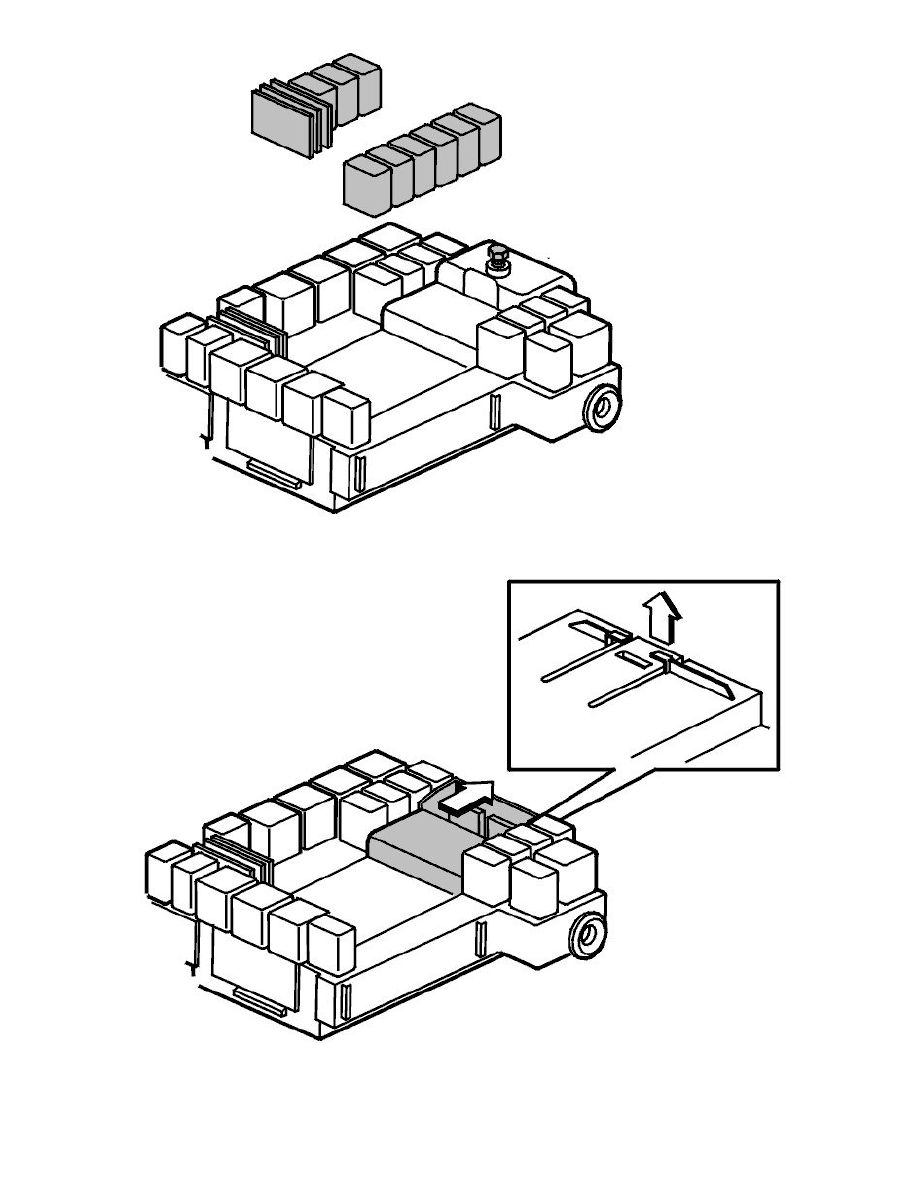

Remove all relays and shunts bridged to the control module. Note the locations.

Release the catch on the rear. Use a screwdriver.
Lift and pull out the control module.
