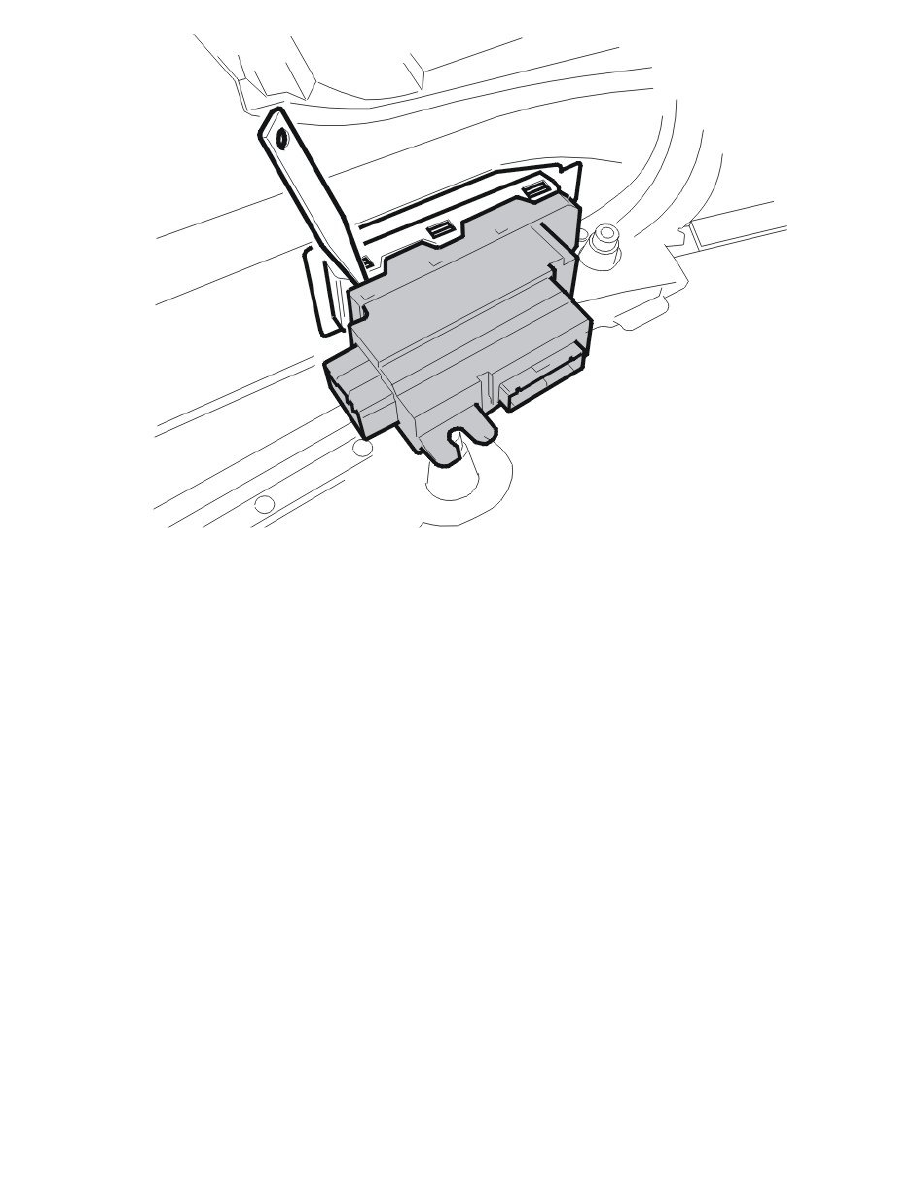

Release the upper catches using a weatherstrip tool. Lift out the control module.

Note! Check that the control module's connectors are intact.

Installing the passenger door module (PDM)

Press the control module into place.

Install:

-

the connectors

-

the nut and screw

-

the door panel, see Panel front side door, replacing See: Body and Frame/Doors, Hood and Trunk/Doors/Front Door/Front Door Panel/Service and
Repair.

Ordering software

Order software for the passenger door module (PDM). See: Testing and Inspection/Programming and Relearning/Software Downloading

Finishing

Initialize the window position in the communication input.

Relay/Fuse Box Cargo Compartment/Rear Electronic Module (REM), Replacing

Relay/fuse box cargo compartment/Rear electronic module (REM), replacing

Note! As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the
essential information in the illustrations is always correct.

Exposing the integrated relay/fusebox in the cargo compartment

Switch off the ignition.
