XC90 AWD L6-2.9L Turbo VIN 91 B6294T (2004)

Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component Information > Diagrams > Diagnostic Aids > Page 844

Page 19
background image

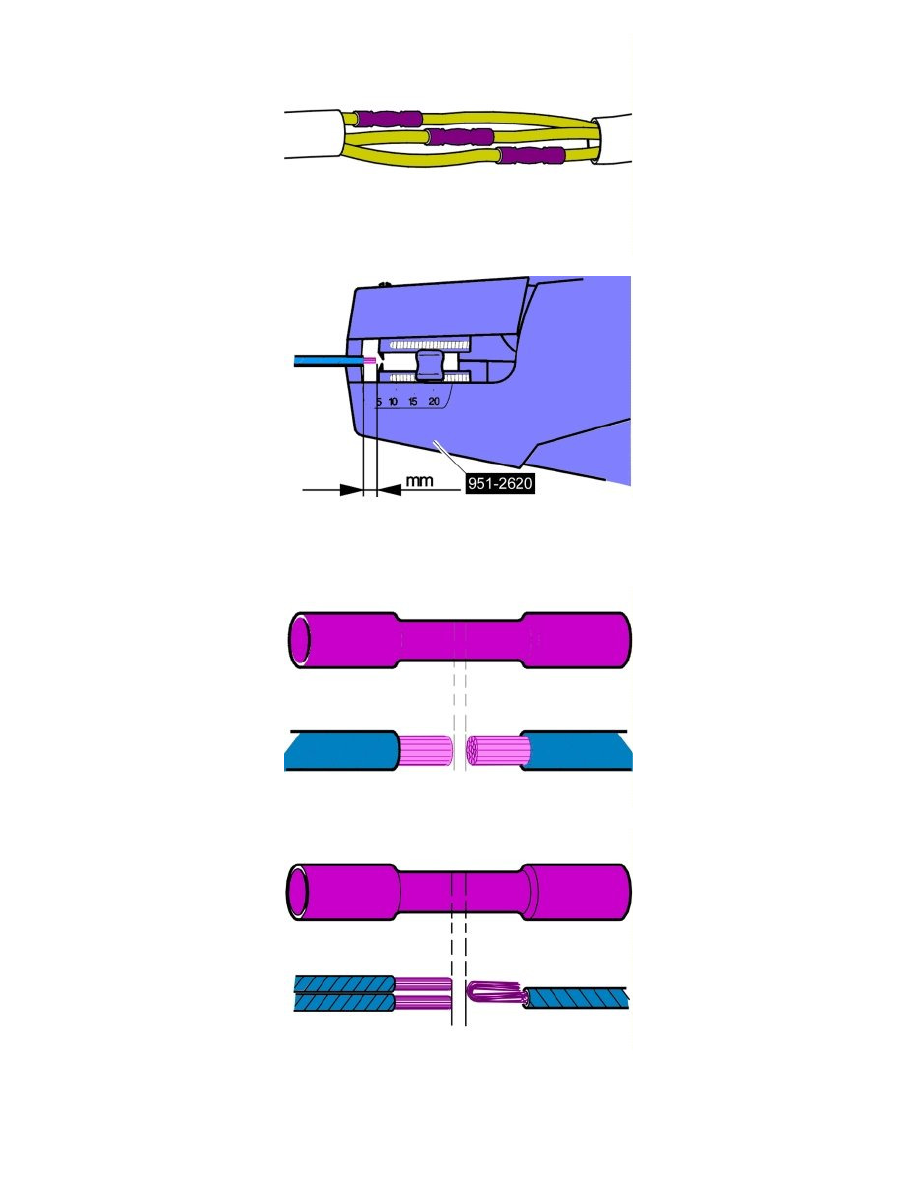

951 2620 Stripping tool See: Tools and Equipment/951 2620 Stripping Tool
See information about stripping length. Refer to: Junction sleeve See: Power and Ground Distribution/Wiring Harness/Service and Repair/Junction
Sleeve
