XC90 AWD V8-4.4L VIN 85 B8444S (2005)

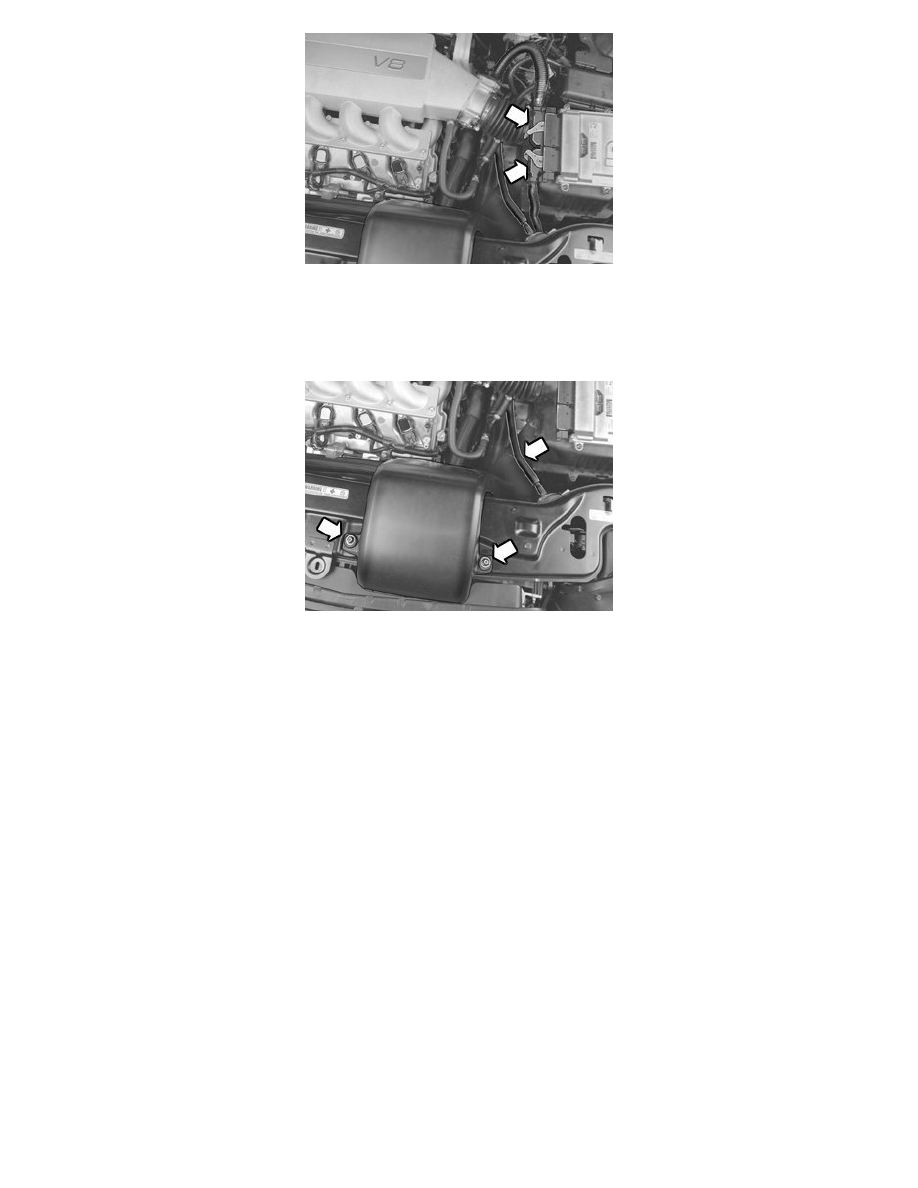

Remove:
-
the 2 connectors from the engine control module (ECM); clip the band clamp to the cable harness
-
the connector from the mass air flow sensor
Removing the air cleaner (ACL)
Remove:
-
the brake vacuum hose from the vacuum pump
-
the 2 screws of the fresh air hose in the front plate
-
the fresh air hose
-
the air cleaner by pulling it straight up.
Removing the upper engine covers
Remove the upper engine covers by pulling them straight up.
Removing the cover over the servo pump
Remove:
-
the 2 screws on the cover over the servo pump
-
the cover.
Removing components
