XC90 AWD V8-4.4L VIN 85 B8444S (2005)

Page 4
background image

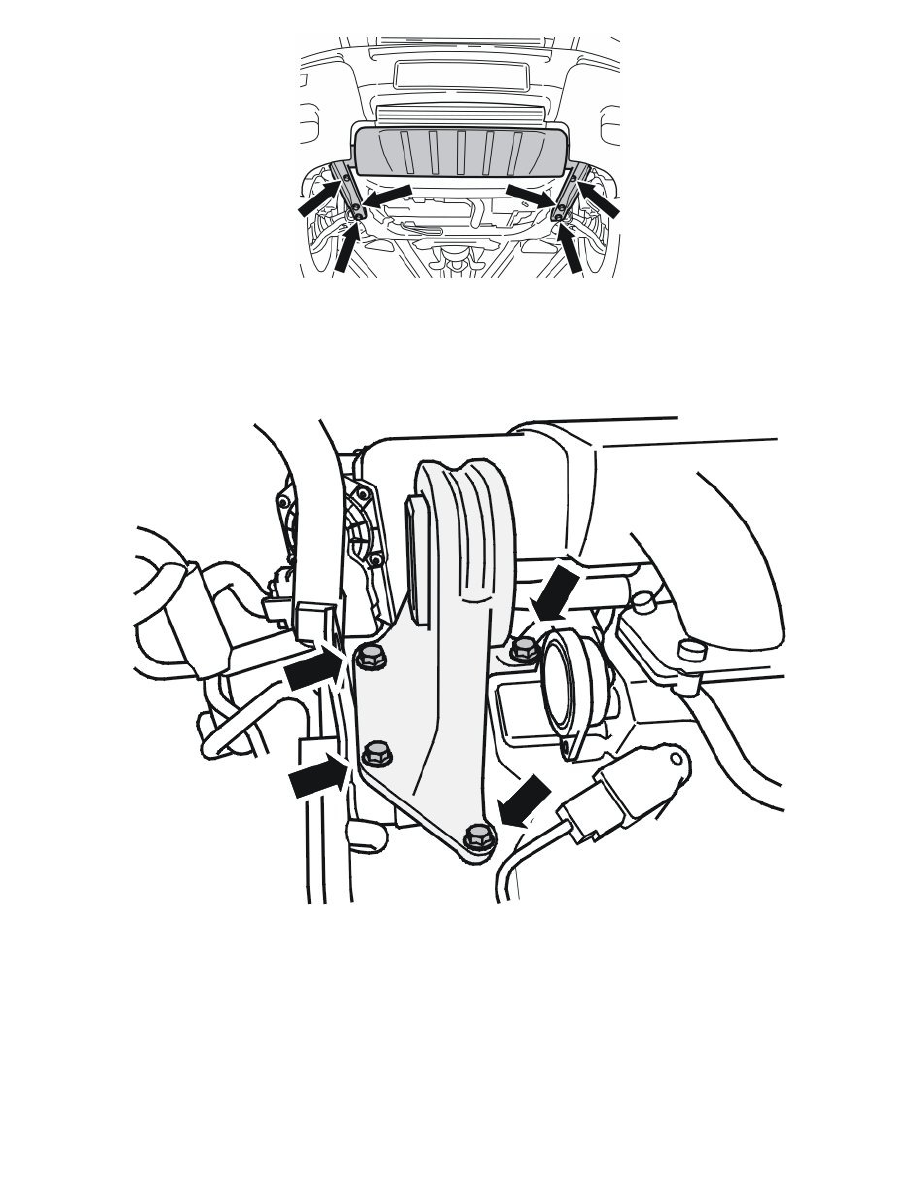

Install:

-

the protective plate

-

the 6 screws; tighten.

Lower the vehicle.

Removing the upper engine mount

Remove:

-

the 4 screws

-

the upper engine mount.

Removing the intake manifold
