XC90 AWD V8-4.4L VIN 85 B8444S (2005)
Cylinder Head Gasket: Service and Repair
Cylinder Head/Gasket, Cylinder 1, 3, 5 and 7 (Bank 1), Replacing
Cylinder head/gasket, cylinder 1, 3, 5 and 7 (Bank 1), replacing
Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However,
the essential information in the illustrations is always correct.
Preparatory work
Disconnect the battery negative cable. See: Battery, disconnecting See: Starting and Charging/Battery/Service and Repair/Procedures/Battery,
Disconnecting.
This work requires that the vehicle be raised. See Jacking points, body See: Maintenance/Vehicle Lifting/Service and Repair.
Remove:
-
the VVT units. See: VVT unit intake camshaft, replacing , B8444S See: Actuators and Solenoids - Engine/Variable Valve Timing
Actuator/Service and Repair/VVT Unit Intake Camshaft, Replacing and VVT unit exhaust camshaft, replacing , B8444S See: Actuators and
Solenoids - Engine/Variable Valve Timing Actuator/Service and Repair/VVT Unit Exhaust Camshaft, Replacing
-
the engine cooling fan (FC). See Engine cooling fan (FC), replacing, B8444S See: Cooling System/Radiator Cooling Fan/Service and Repair
-
the temperature sensor, see: Temperature sensor engine coolant, replacing, B8444S See: Cooling System/Engine - Coolant Temperature
Sensor/Switch/Coolant Temperature Sensor/Switch (For Computer)/Service and Repair.
Exposing

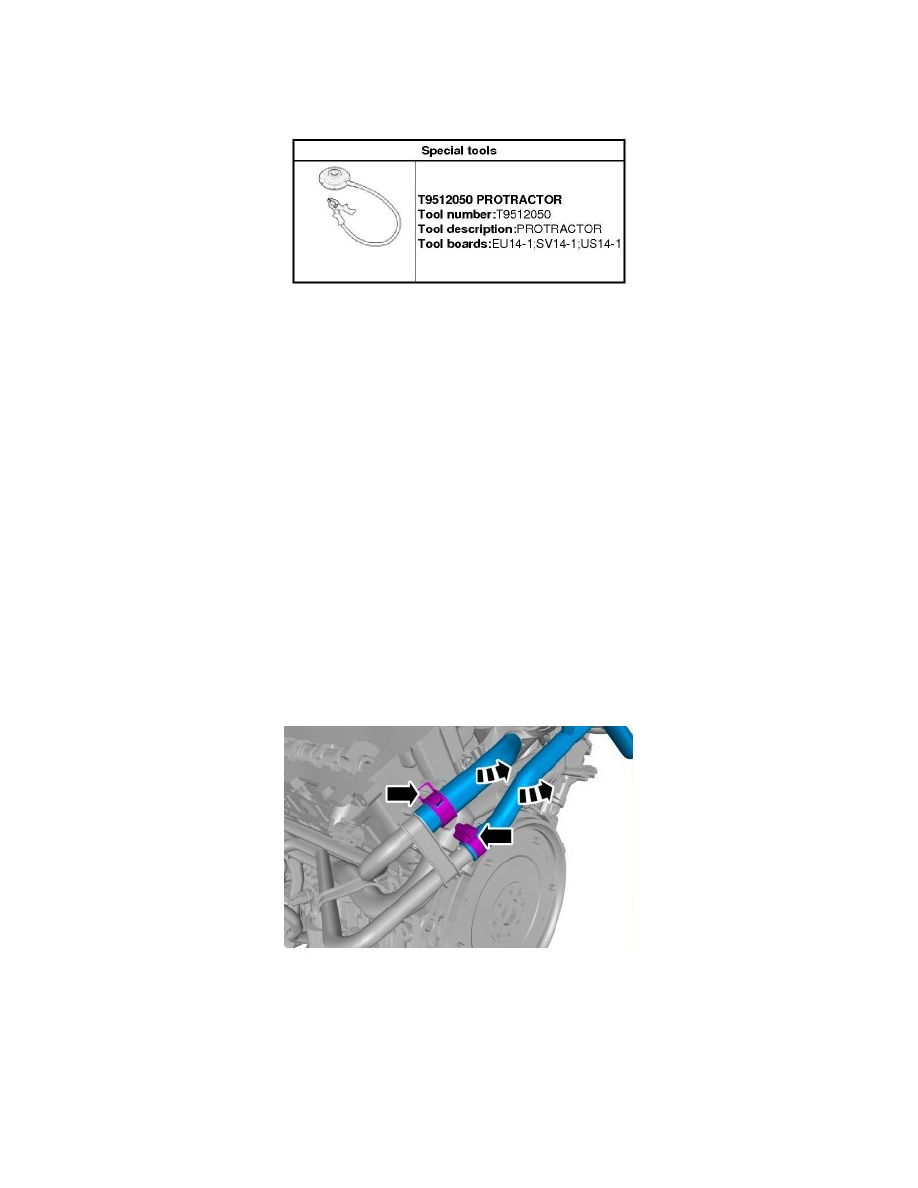

Exposing the cylinder head, cylinders 1, 3, 5 and 7 (Bank 1)
Remove:
-
the hose clamp for the upper coolant hose, place the coolant hose to one side.
-
the 2 x connectors for the camshaft position (CMP) sensors
Remove the coolant hoses and place them to one side.
