XC90 AWD V8-4.4L VIN 85 B8444S (2005)
Variable Valve Timing Solenoid: Removal and Replacement
Variable valve timing solenoid, replacing
Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the
essential information in the illustrations is always correct.
Removal
Removing the valve cover
Remove the valve cover. See: Valve cover/gasket, replacing, B8444S See: Cylinder Head Assembly/Valve Cover/Service and Repair.

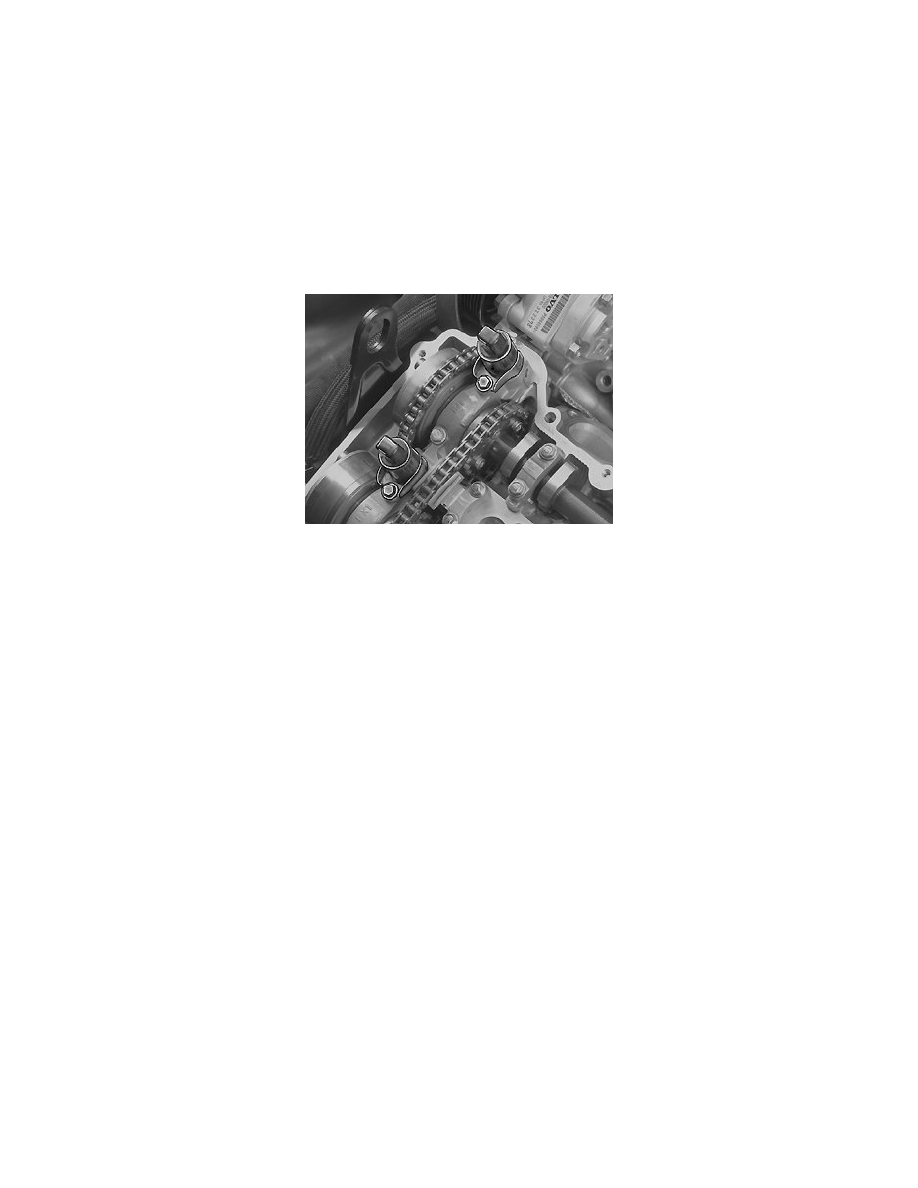

Removing the variable valve timing solenoid
Remove:
-
the 1 M6 screw
-
the variable valve timing solenoid by pulling it straight up.
Installation
Note! For tightening torques, see: Specifications.
Installing the variable valve timing solenoid
Install:
-
the variable valve timing (VVT) solenoid
-
the 1 M6 screw; tighten.
Installing the valve cover
Install the valve cover. See: Valve cover/gasket, replacing, B8444S See: Cylinder Head Assembly/Valve Cover/Service and Repair.
