XC90 AWD V8-4.4L VIN 85 B8444S (2005)
Backup Lamp Switch: Service and Repair
Back-up lamp switch, replacing
Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However,
the essential information in the illustrations is always correct.
Removing the gear selector cables
Remove the air cleaner (ACL) housing and the gear selector cables from the levers and the bracket on the gearbox. See Gearbox cables, replacing .
Note! Ensure that the mechanical cables do not crack or break.

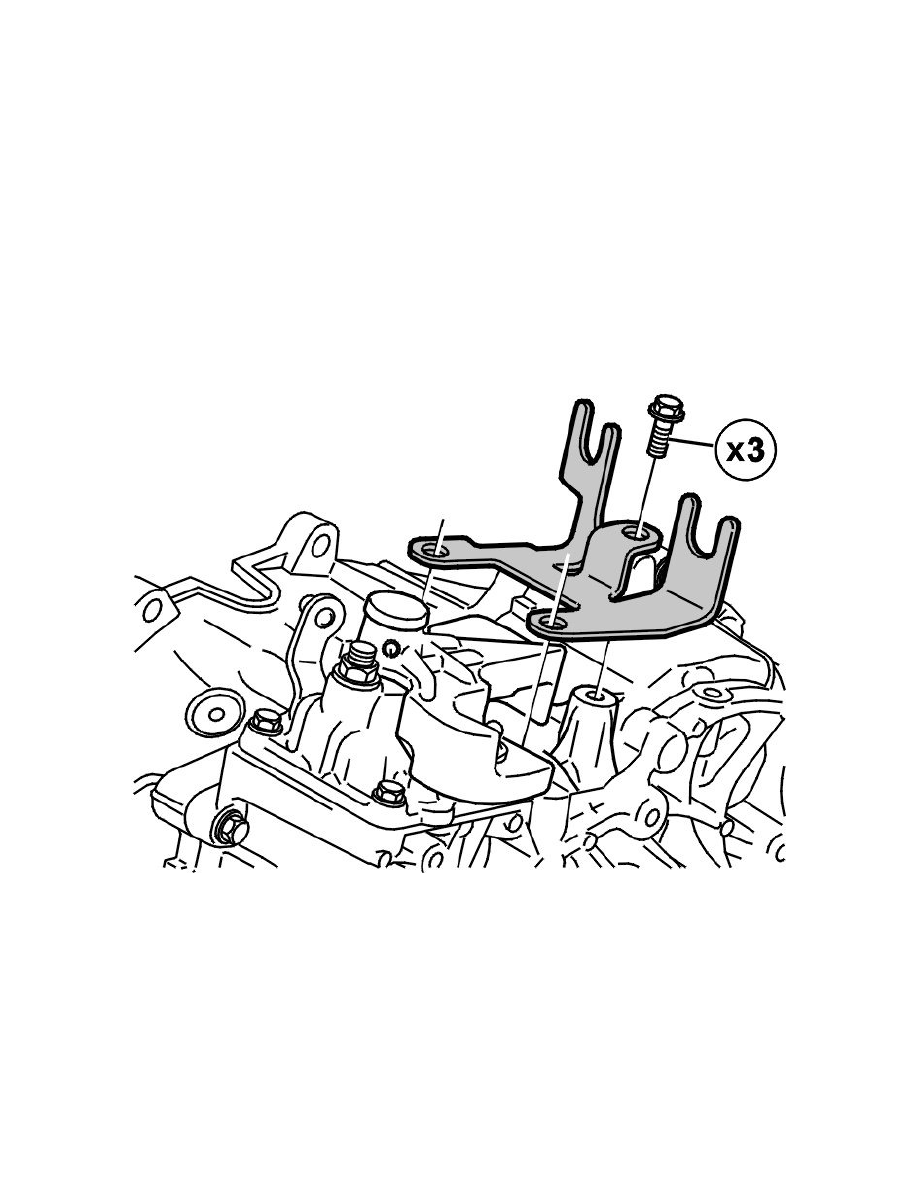

Removing the bracket for the gear selector cables
Remove the bracket from the gearbox.
