XC90 AWD V8-4.4L VIN 85 B8444S (2005)
Relay Box: Service and Repair
Integrated Relay/Fusebox in Engine Compartment
Integrated relay/fusebox in engine compartment
Note! As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the
essential information in the illustrations is always correct.

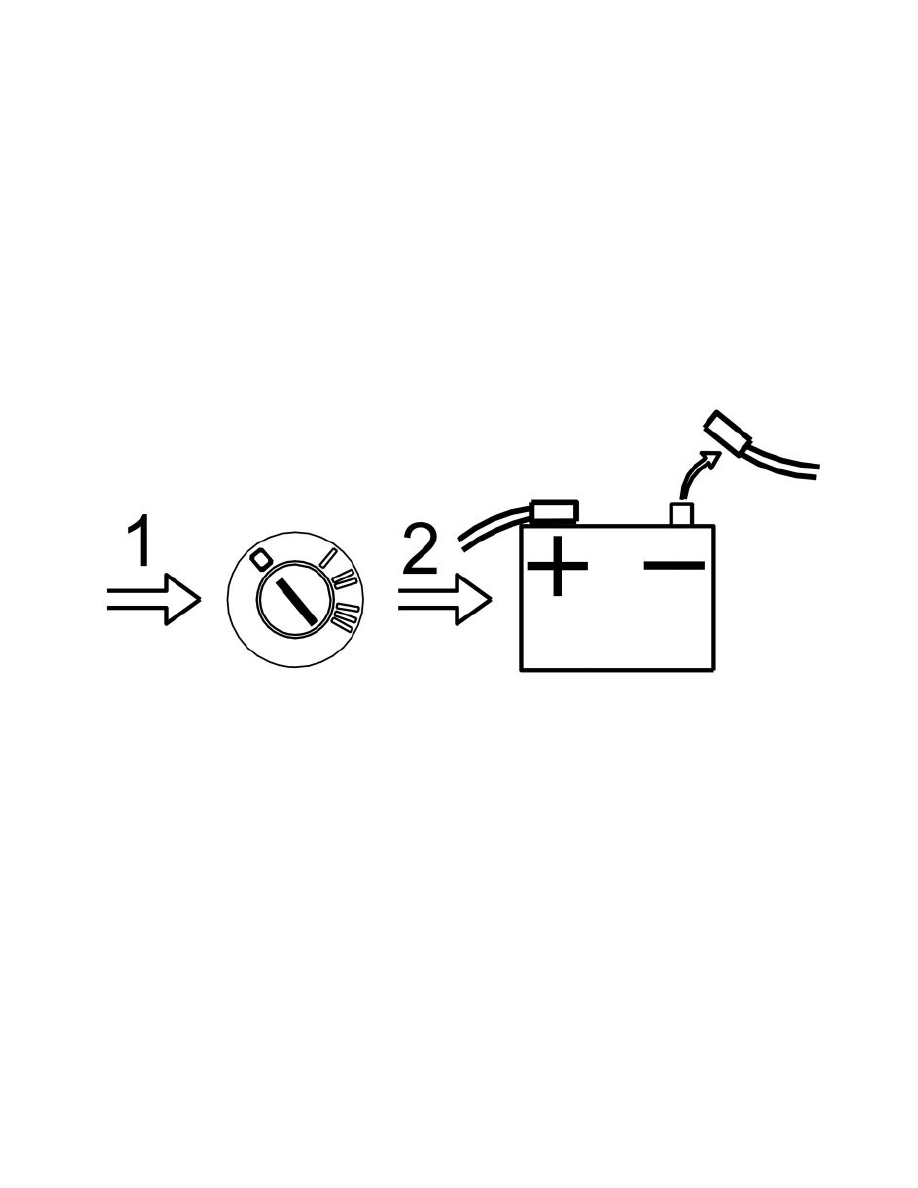

Disconnect the battery negative lead. Also see Battery, disconnecting See: Starting and Charging/Battery/Service and Repair/Procedures/Battery,
