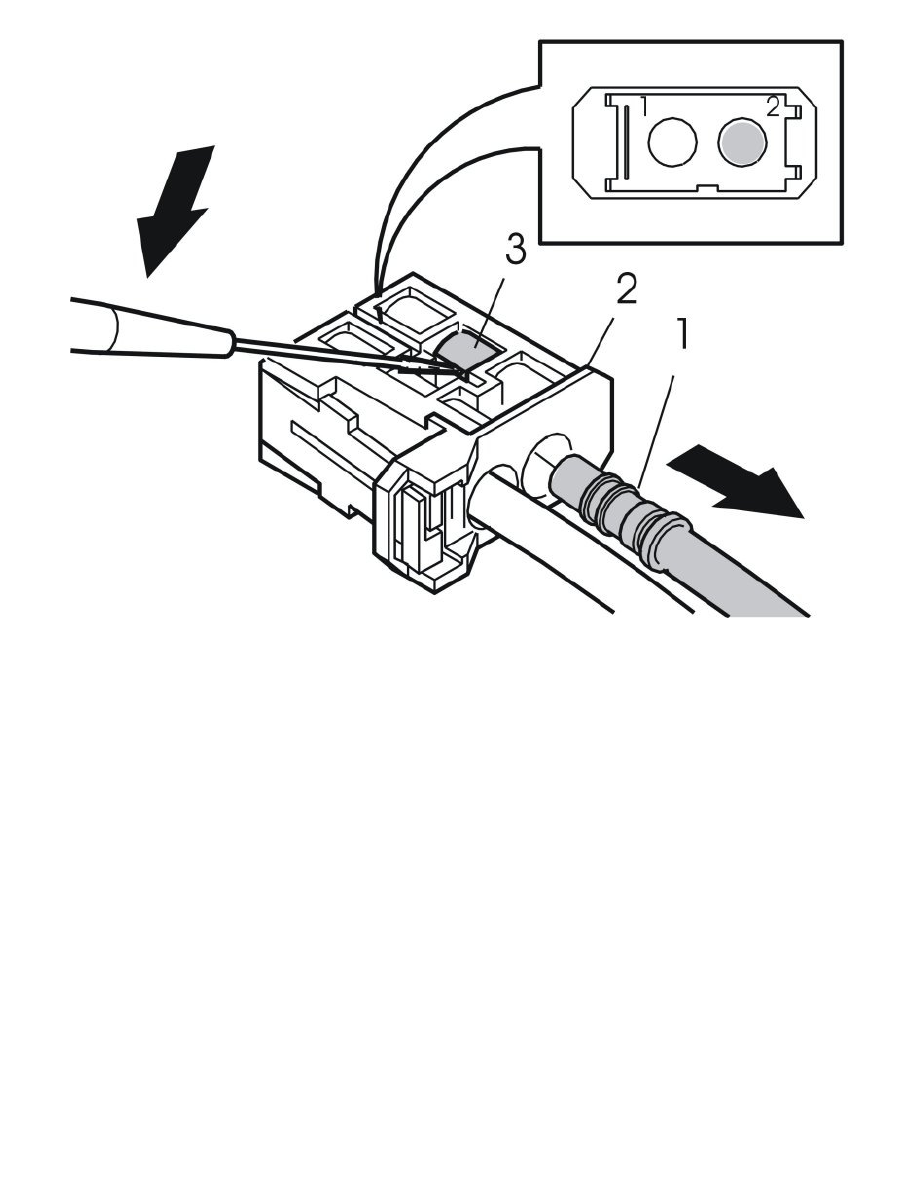

Open the catches (3) using a screwdriver.
Pull out the ferrule (1). Make a note of its location.

Disassembling the combined connector (optic and electrical conductor) (1)
