Cut the required length (+10 mm) of fiber optic.

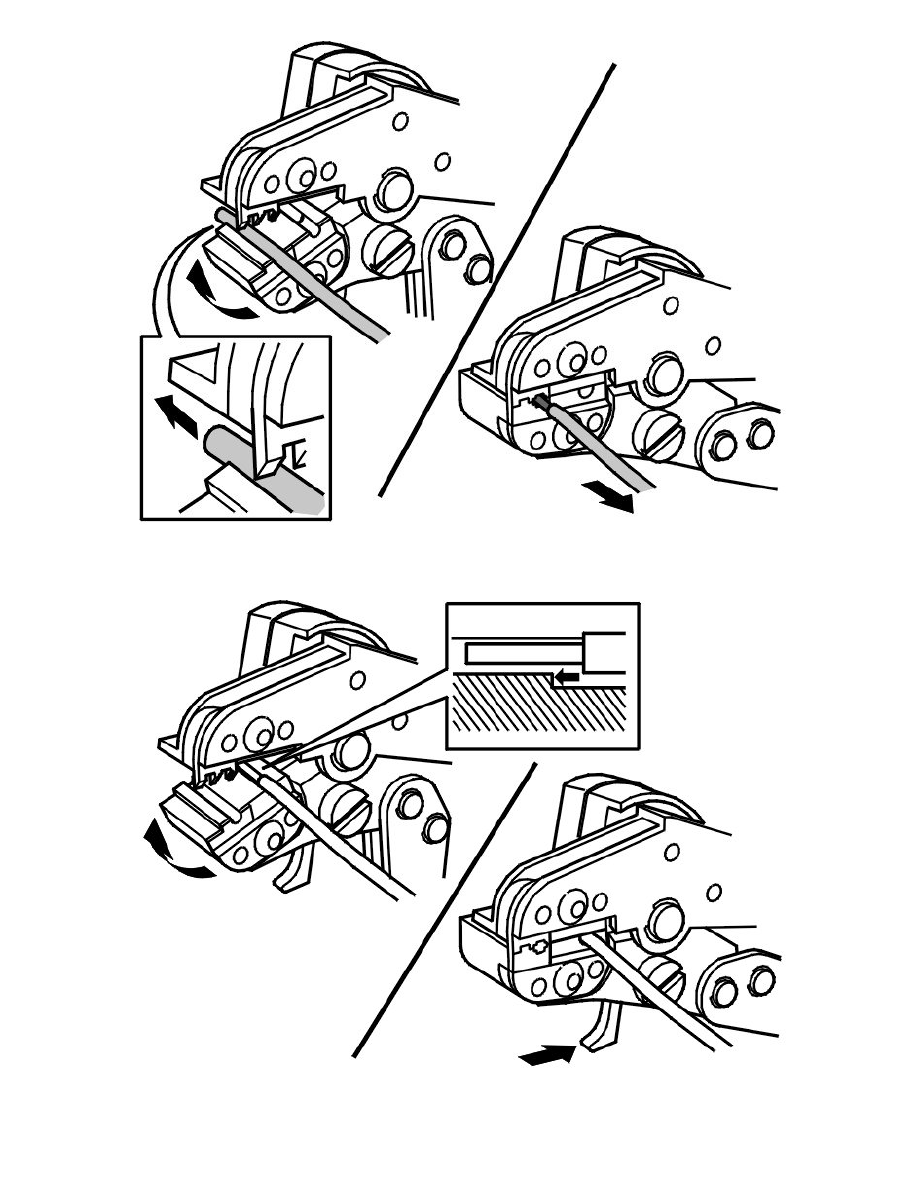

Strip the fiber optic. Use tool 951 2868 Fiber cutter See: Tools and Equipment/951 2868 Fiber Cutter as illustrated

Strip the fiber optic. Use tool 951 2868 Fiber cutter See: Tools and Equipment/951 2868 Fiber Cutter as illustrated.
