XC90 AWD V8-4.4L VIN 85 B8444S (2005)

Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Emission Control Systems > Air Injection Pump Relay > Component Information > Diagrams > Diagram Information and Instructions > Page 1976

Page 29
background image

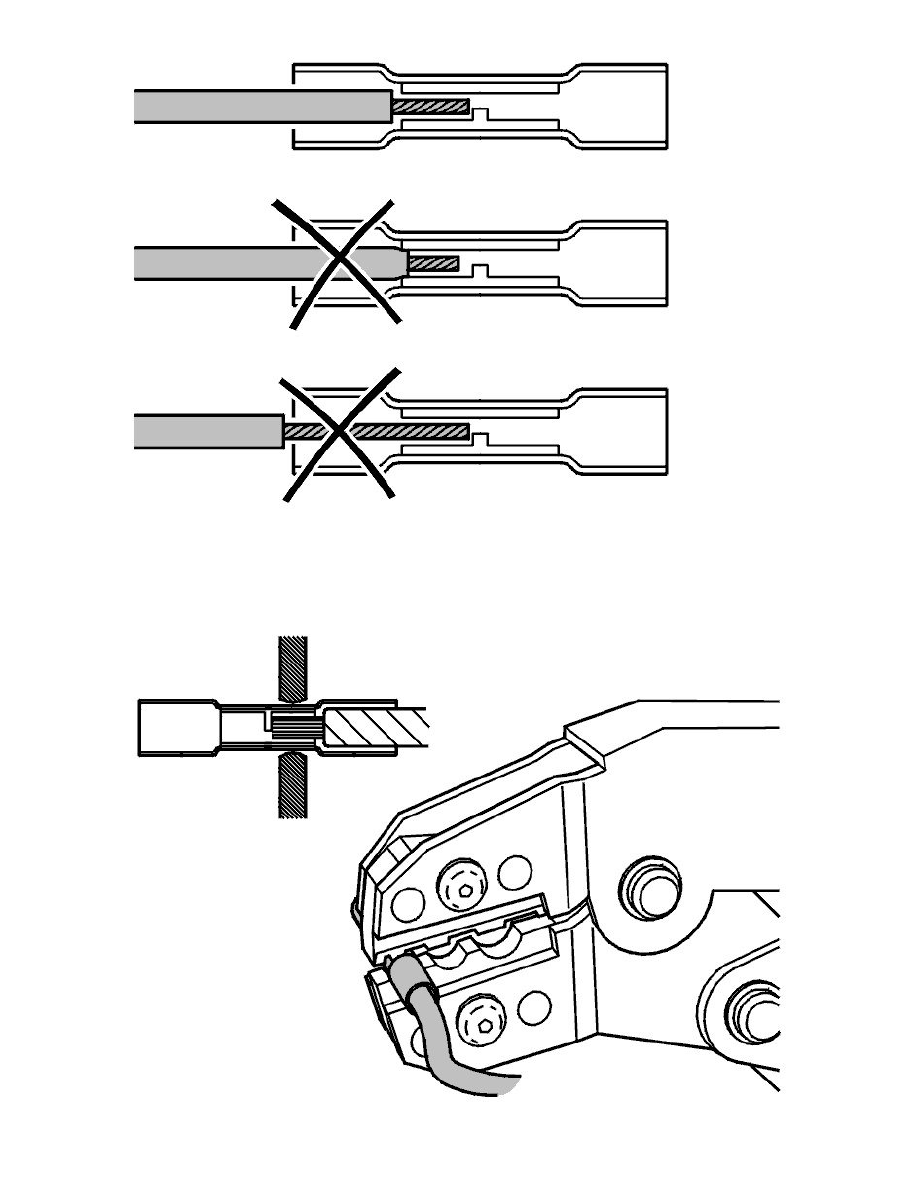

Note! The sleeve must sit in the correct output of the pressure tool, position "Green".

Feed the end of the wire in the shrink tubing that is held by the pliers. Feed the wire into the shrink tubing until it stops, make sure that the wire
insulation does not go near the clamp on the sleeve or the stripped wire will protrude outside the sleeve.
