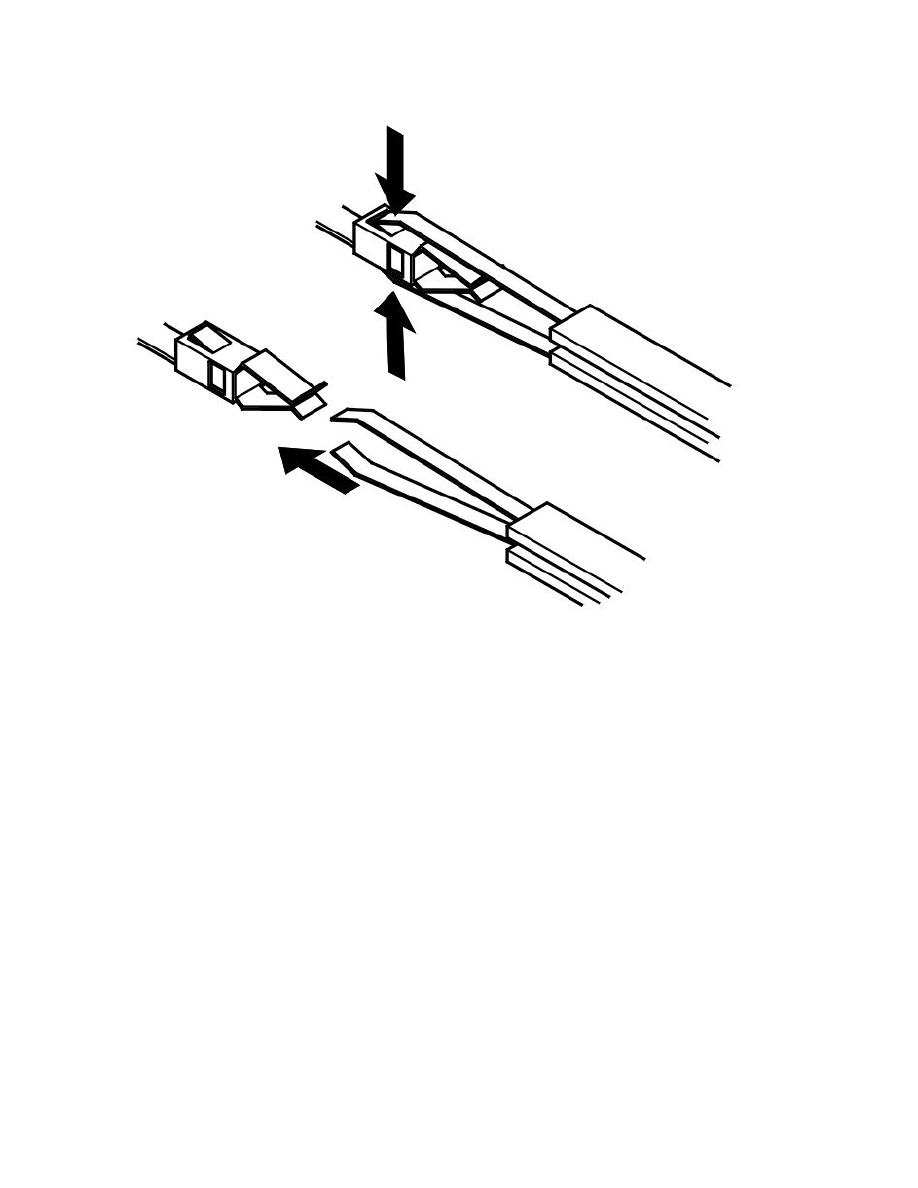

Use tools 951 2630 Terminal removal tool See: Tools and Equipment/951 2630 Terminal Removal Tool and 951 2631 Terminal removal tool See: Tools
and Equipment/951 2631 Terminal Removal Tool to remove the primary lock, as illustrated.
At the same time pull the cable carefully backwards.

Connector, assembling

Note! Wheel sensor cables are twisted pair (positive and negative signal) cables for each wheel. It is important that paired cables are twinned in
the same way when they are reinstalled in the connector. The cables must be twisted approximately 3 times per 100 mm.

Primary lock
