XC90 AWD V8-4.4L VIN 85 B8444S (2005)

Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Emission Control Systems > Air Injection Pump Relay > Component Information > Diagrams > Diagram Information and Instructions > Page 2008

Page 61
background image

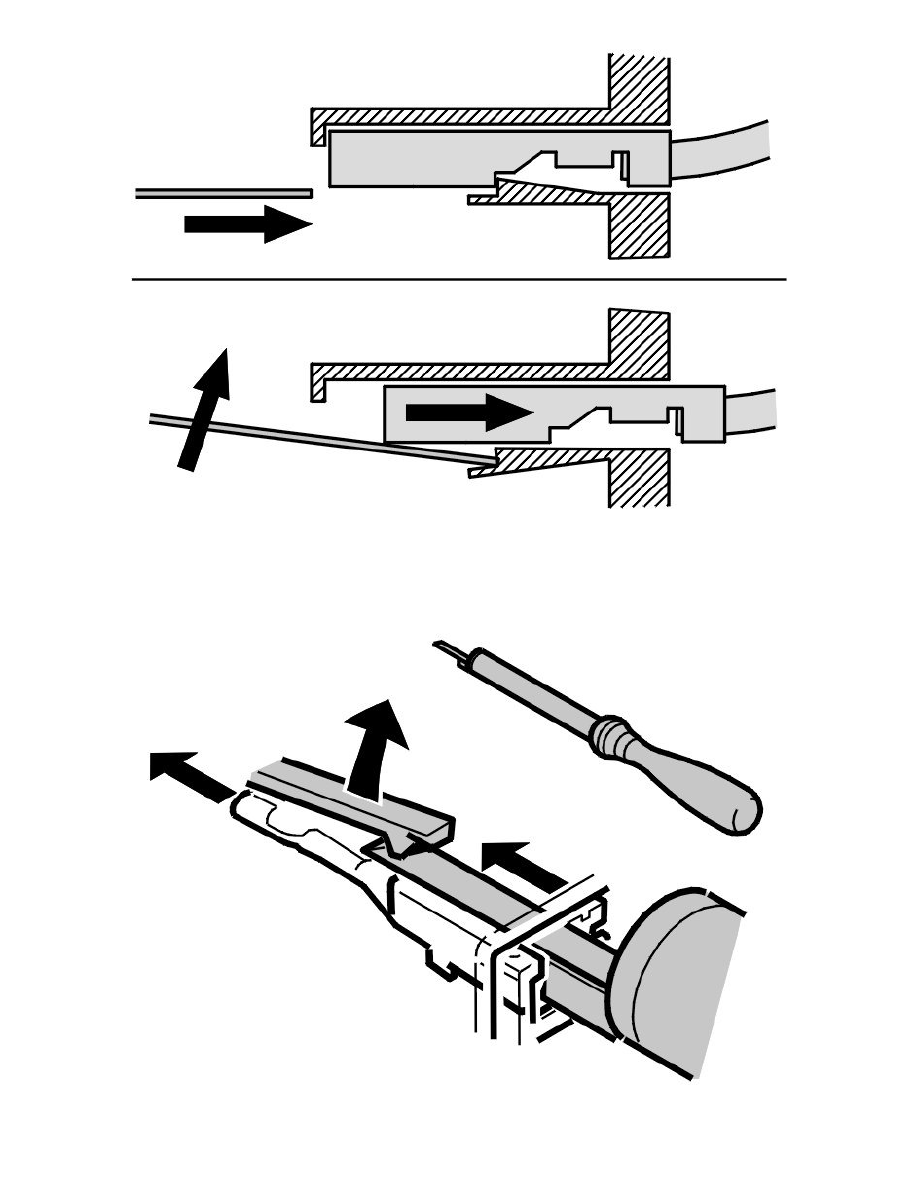

Use tools 951 2633 Terminal removal tool See: Tools and Equipment/951 2633 Terminal Removal Tool , 951 2639 Terminal removal tool See: Tools
and Equipment/951 2639 Terminal Removal Tool to remove the primary lock, as illustrated.
At the same time pull the cable carefully backwards.

Alternatively use tool 951 2852 Terminal removal tool See: Tools and Equipment/951 2852 Terminal Removal Tool as illustrated.
