XC90 AWD V8-4.4L VIN 85 B8444S (2005)

Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Emission Control Systems > Air Injection Pump Relay > Component Information > Diagrams > Diagram Information and Instructions > Page 2019

Page 72
background image

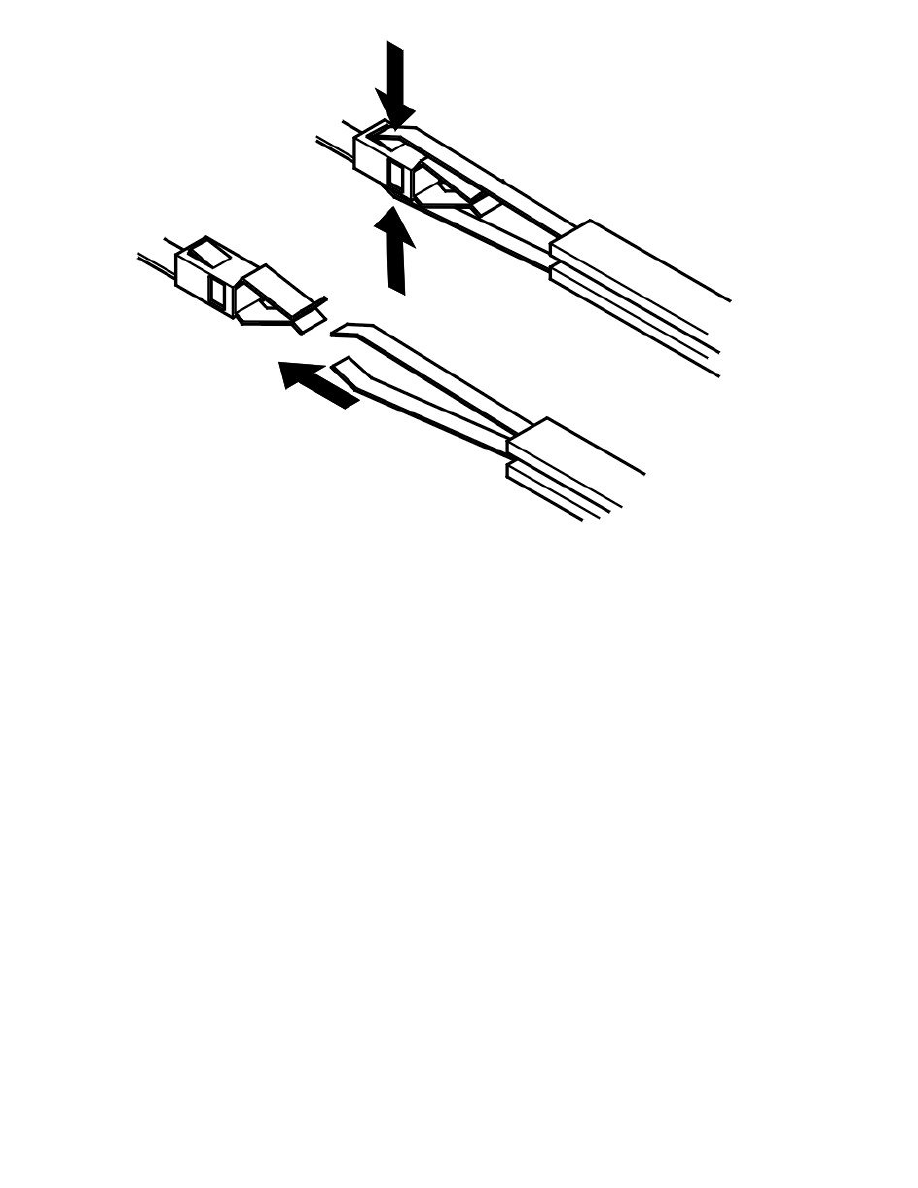

Connector, assembling

Primary lock

Check that the cable terminal is undamaged.
Press the cable terminal into the housing.
Check that the cable terminal is properly locked by pulling carefully on the cable.

Secondary lock

Press the secondary lock into place.

Connector Type 4

Connectors, repair

Special tools: 951 2632 Terminal removal tool See: Tools and Equipment/951 2632 Terminal Removal Tool , 951 2639 Terminal removal tool See:
Tools and Equipment/951 2639 Terminal Removal Tool , 951 2810 Terminal removal tool See: Tools and Equipment/951 2810 Terminal Removal Tool
, 951 2852 Terminal removal tool See: Tools and Equipment/951 2852 Terminal Removal Tool.

Note! As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the
essential information in the illustrations is always correct.

Connector, dismantling

Secondary lock
