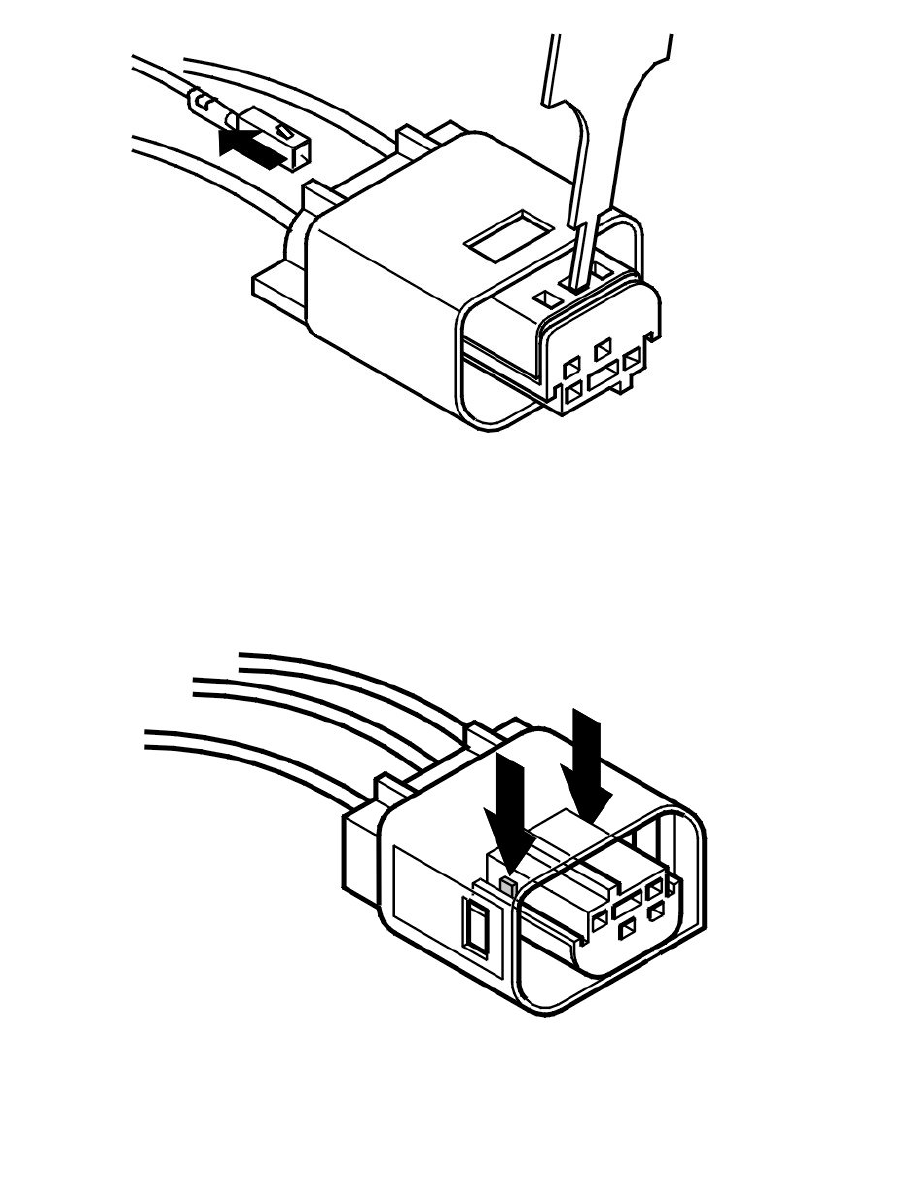

Adjust the lock pins using an electrician's screwdriver and press up the secondary lock, as illustrated.

The primary lock

Use tool 951 2637 Terminal removal tool See: Tools and Equipment/951 2637 Terminal Removal Tool to press down the cable terminal locking tab, as

Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Emission Control Systems > Air Injection Pump Relay > Component Information > Diagrams > Diagram Information and Instructions > Page 2033
