Page 111
background image

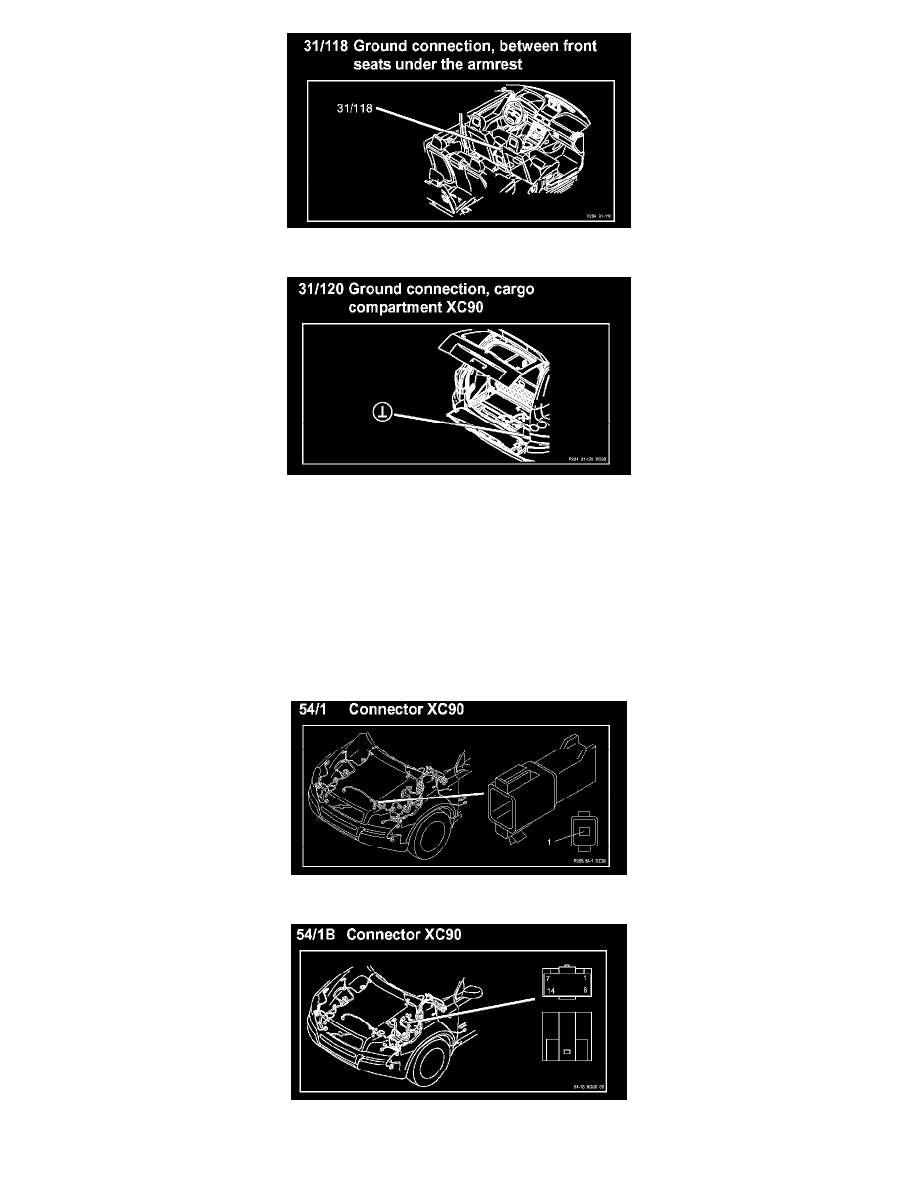

31/118 Ground Connection, Between Front Seats Under The Armrest

31/120 Ground Connection, Cargo Compartment

53/### Junction Points

Junction Points

All references in the diagrams that begin with the number 53 (i.e. 53/###) are references to the vehicle's Junction Points.

Diagrams for the Junction Points can be found at Branching Point Diagrams.  See: Power and Ground Distribution/Branching Point/Diagrams/Electrical
Diagrams

Locations for the Junction Points can be found within the Harness Locations images at the vehicle level.  See: Locations/Harness Locations

54/1 Connector

54/1B Connector

Relays and Modules > Relays and Modules - Transmission and Drivetrain > Relays and Modules - Differential > Control Unit, Differential Lock > Component Information > Diagrams > Diagram Information and Instructions > Page 2394
