XC90 AWD V8-4.4L VIN 85 B8444S (2005)

Relays and Modules > Relays and Modules - Transmission and Drivetrain > Relays and Modules - Differential > Control Unit, Differential Lock > Component Information > Diagrams > Diagram Information and Instructions > Page 2454

Page 31
background image

Feel by hand to make sure the shrink tubing is correctly installed.

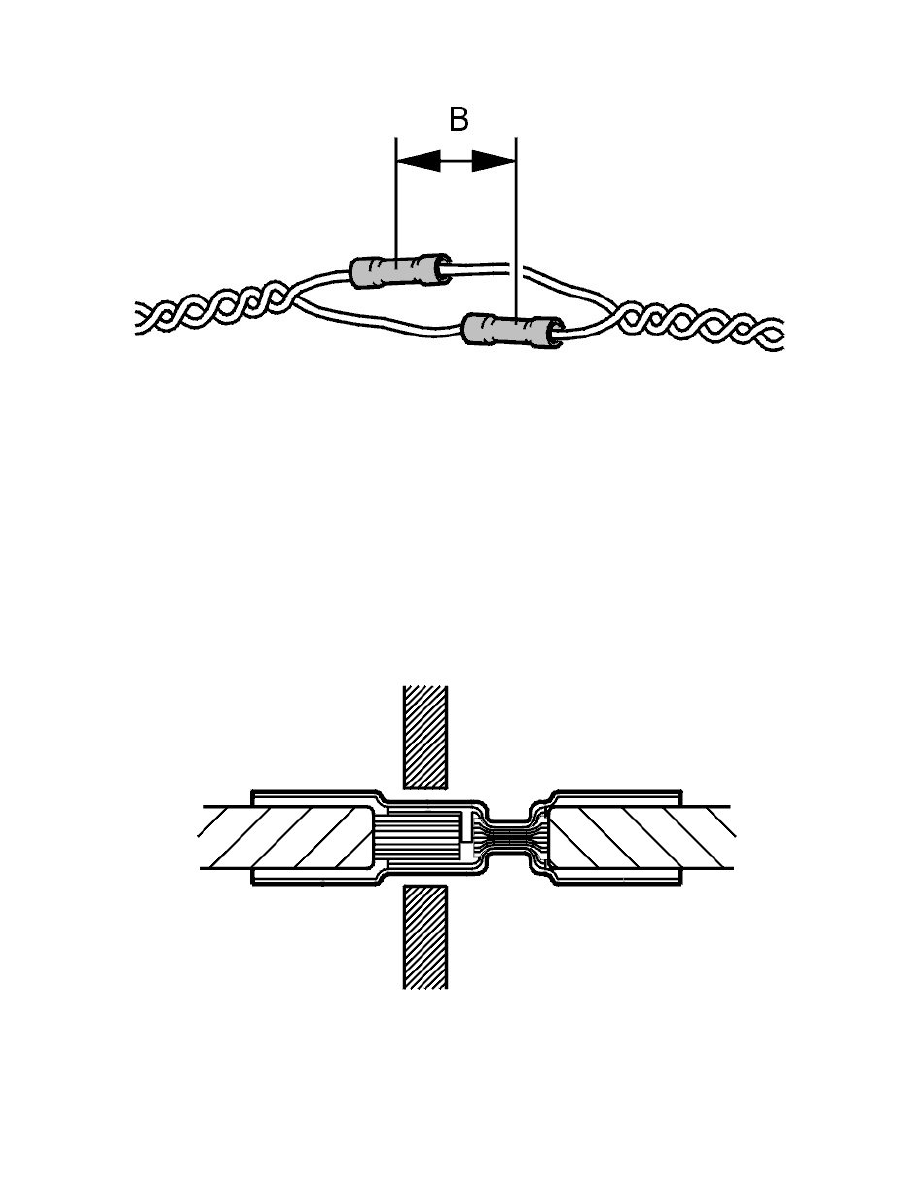

Check that measurement B is 40mm (1-1/2 inches) between the joints from center to center.

Note! Remember the cable, color to color (with same color/single or multi-colored).

Relays and Modules > Relays and Modules - Transmission and Drivetrain > Relays and Modules - Differential > Control Unit, Differential Lock > Component Information > Diagrams > Diagram Information and Instructions > Page 2454
