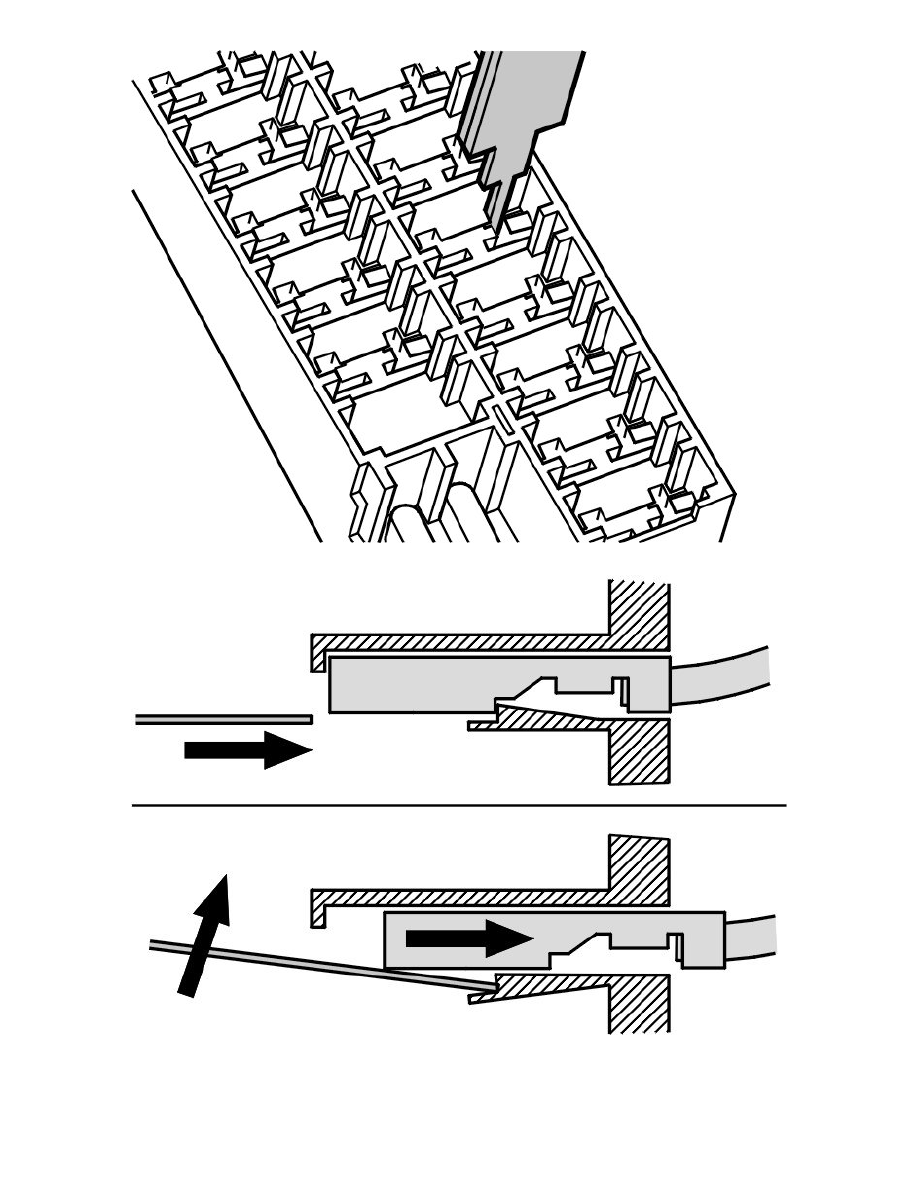

Use tools 951 2633 Terminal removal tool See: Tools and Equipment/951 2633 Terminal Removal Tool , 951 2639 Terminal removal tool See: Tools
Note! The relay holders can be connected and several locks may need to be adjusted at the same time.
