Relays and Modules > Relays and Modules - Transmission and Drivetrain > Relays and Modules - Differential > Control Unit, Differential Lock > Component Information > Diagrams > Diagram Information and Instructions > Page 2492

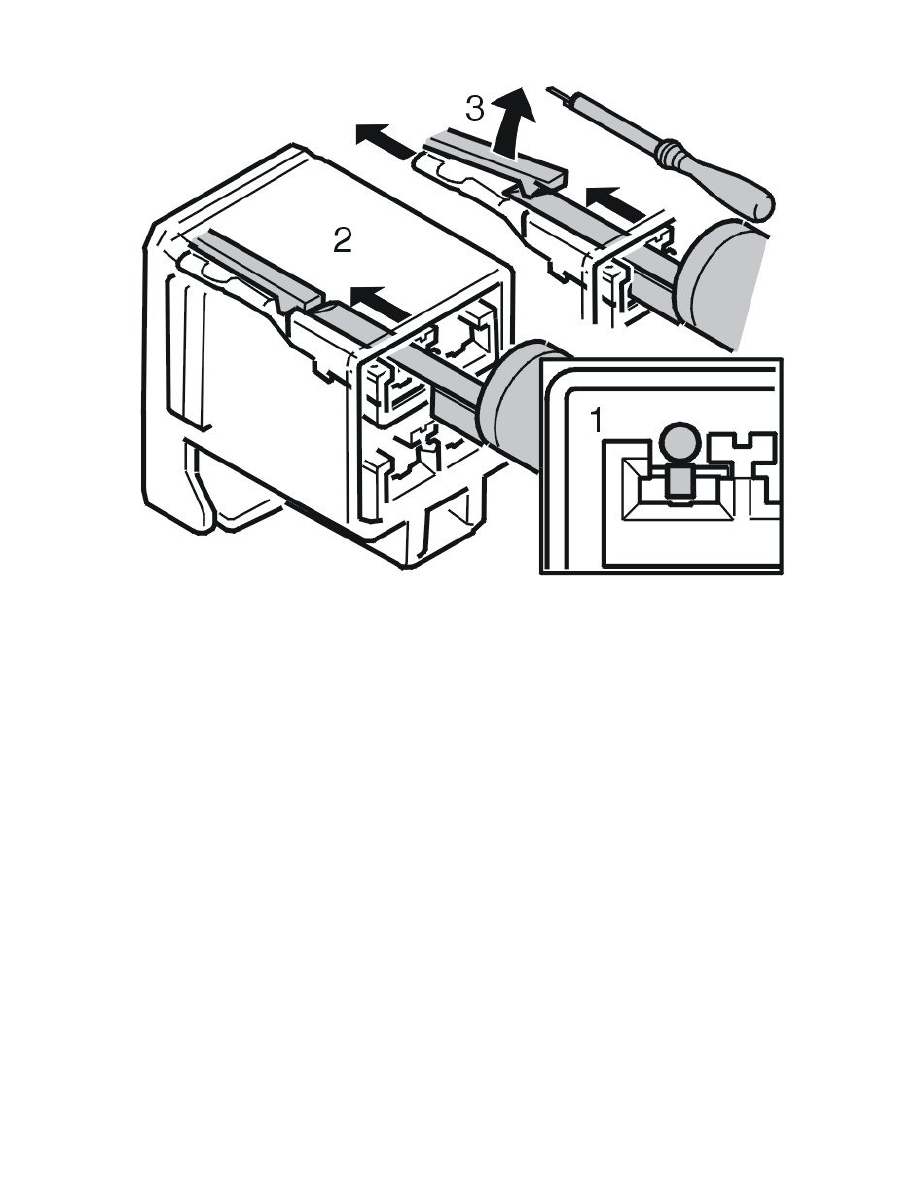

remove the primary lock, as illustrated.
Alternatively use tool 951 2852 Terminal removal tool See: Tools and Equipment/951 2852 Terminal Removal Tool as illustrated.
Note! tool 951 2852 Terminal removal tool See: Tools and Equipment/951 2852 Terminal Removal Tool can only be used for socket housings.
Check that the cable terminal is undamaged.
Press the secondary lock into place.
Connector Type 3
Special tools: 951 2630 Terminal removal tool See: Tools and Equipment/951 2630 Terminal Removal Tool , 951 2631 Terminal removal tool See:
Note! As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the
