Volvo Workshop Manuals
XC90 AWD V8-4.4L VIN 85 B8444S (2005)
Relays and Modules > Relays and Modules - Transmission and Drivetrain > Relays and Modules - Differential > Control Unit, Differential Lock > Component Information > Diagrams > Diagram Information and Instructions > Page 2504

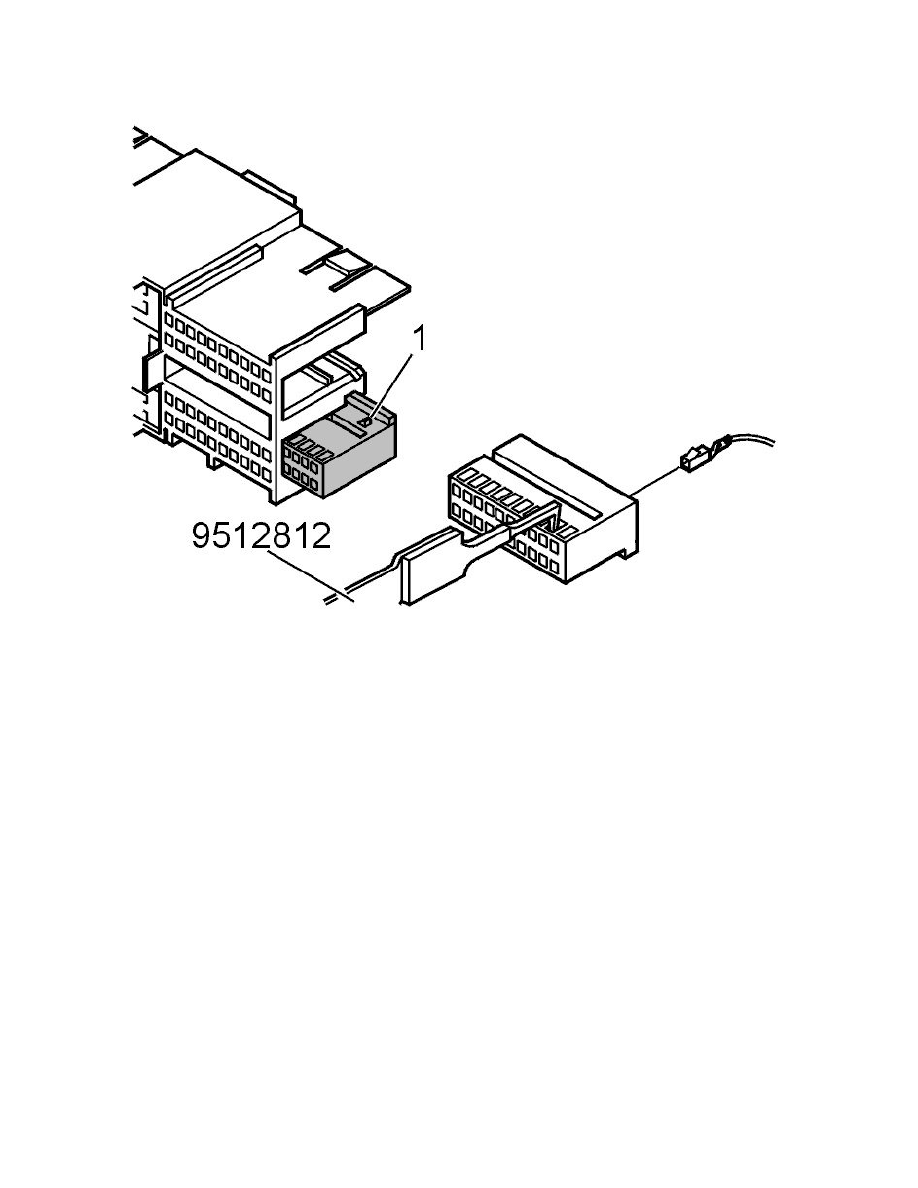

Use tool 951 2639 Terminal removal tool See: Tools and Equipment/951 2639 Terminal Removal Tool to remove the center cable terminals, as
Release the inner housing section on the socket housing by lifting the sleeve beside the catch and pulling the housing section outwards.
Check that the cable terminal is undamaged.
Slide the receptacle housing into the connector.
Sealed Connector Type 1
Connector sealed, repair
Special tools: 951 2631 Terminal removal tool See: Tools and Equipment/951 2631 Terminal Removal Tool.
Note! As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the
The connector has no secondary lock.
