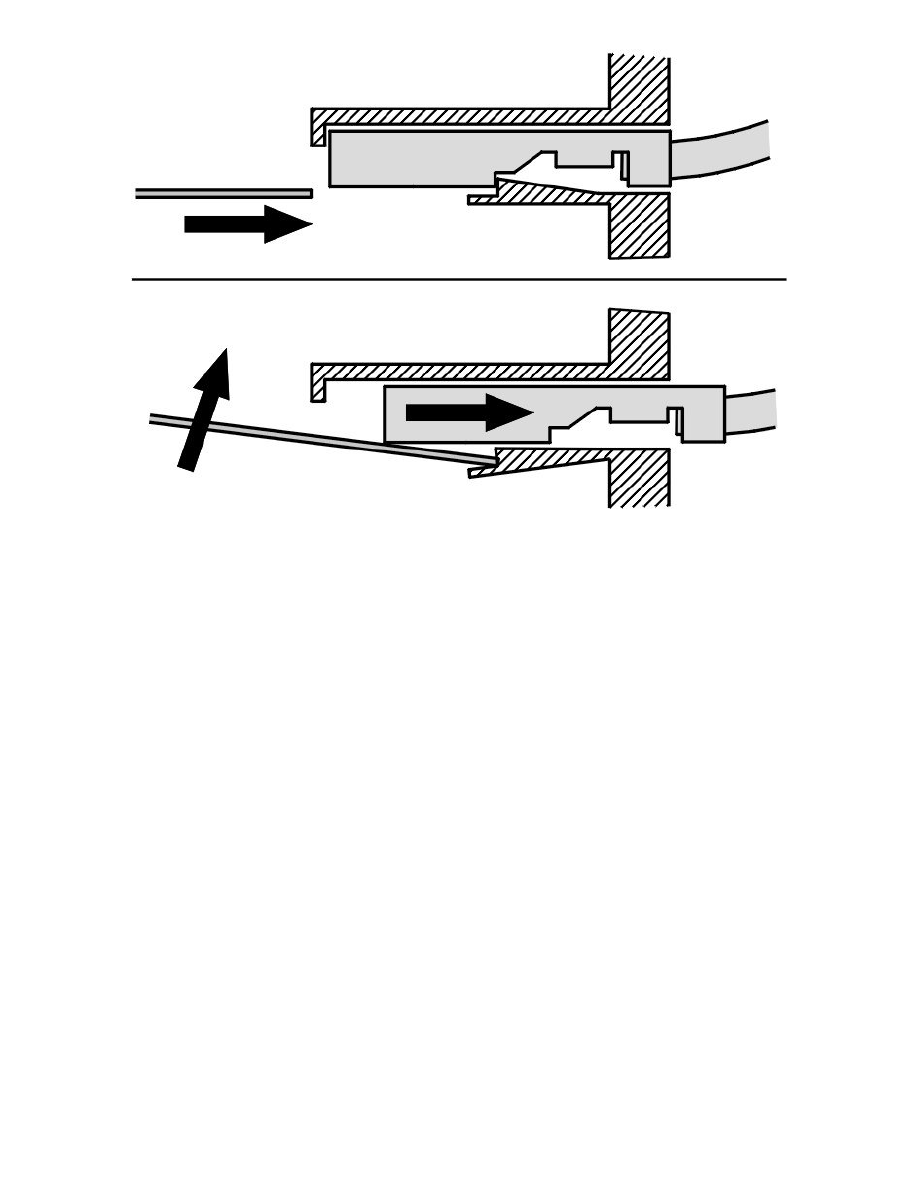

Use tools951 2632 Terminal removal tool See: Tools and Equipment/951 2632 Terminal Removal Tool , 951 2639 Terminal removal tool See: Tools
and Equipment/951 2639 Terminal Removal Tool to remove the primary lock, as illustrated.
At the same time pull the cable carefully backwards.

Alternatively use tool 951 2852 Terminal removal tool See: Tools and Equipment/951 2852 Terminal Removal Tool as illustrated.

Note! tool 951 2852 Terminal removal tool See: Tools and Equipment/951 2852 Terminal Removal Tool can only be used for socket housings.

Connector, assembling

Primary locking

Relays and Modules > Relays and Modules - Transmission and Drivetrain > Relays and Modules - Differential > Control Unit, Differential Lock > Component Information > Diagrams > Diagram Information and Instructions > Page 2507
