XC90 FWD L6-3.2L VIN 98 B6324S (2007)

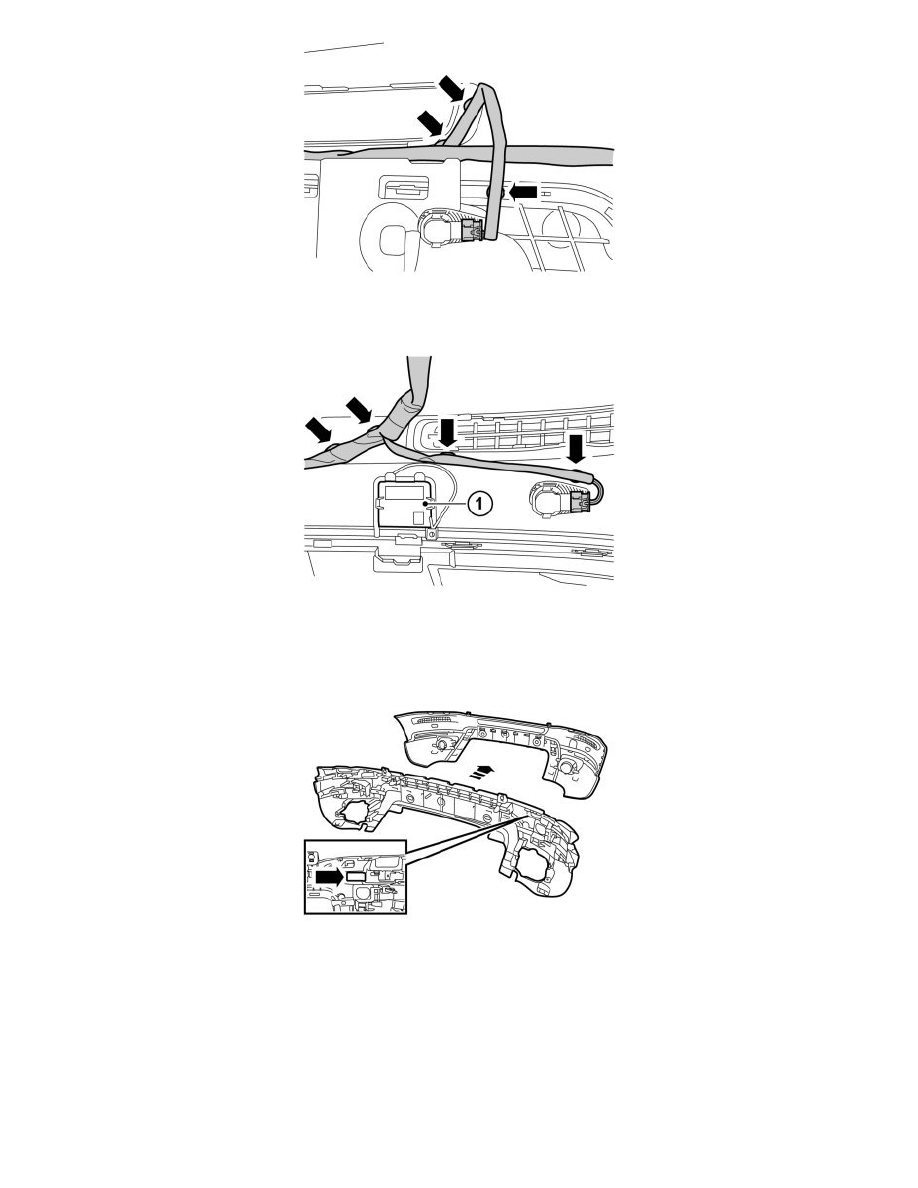

Right inner sensor
-
Attach the cable harness with butyl tape at the marked points.
Right outer sensor
-
Attach the cable harness with butyl tape at the marked points.
Note! The cable may not end up on the cover for the towing eye (1).
-
Assemble outer and inner casing and, at the same time, insert the cable harness through the inner casing.
Note! Make sure that all catches fully engage.
-
Reinstall the headlight washers.
