XC90 FWD L6-3.2L VIN 98 B6324S (2007)
-

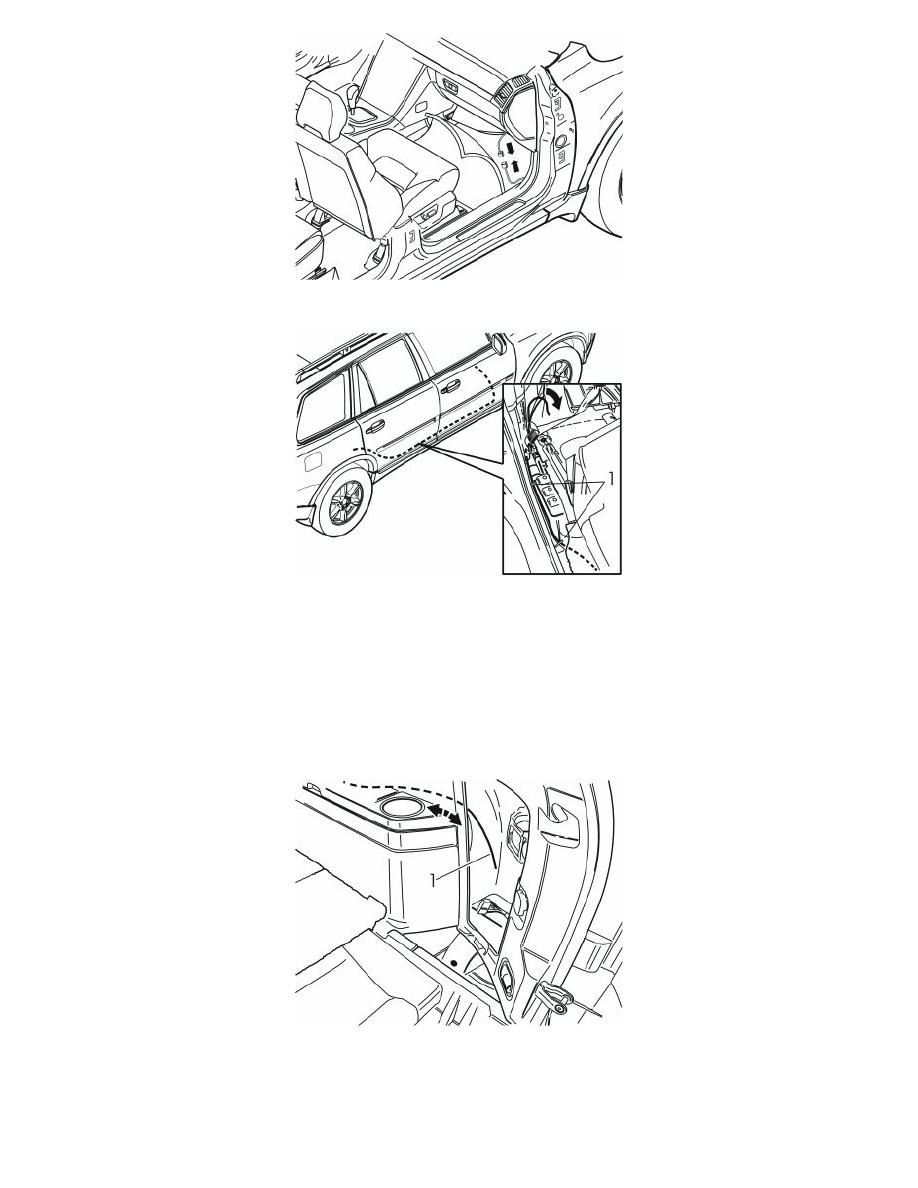

Take the long cable from the kit and connect it to the connector which has just been prepared.
-
Guide the cable down between the carpet and the door sill as far as possible to the floor and route it along the right-hand side of the car on to the
rear edge of the right-hand rear door's opening.
-
Route the cable by the front right-hand seat mounting on the right-hand seat in the second row of seats.
-
Pull away the mat from the front edge of the right-hand side panel in the cargo compartment.
-
Route the cable harness along the right side of the right seat's placement in the second row of seats, towards the front edge of the rear wheel
housing.
-
Route it further on the left-hand side of the seat belt's lower mounting, between the support bracket for the right-hand seat and wheel housing, and
out at the left-hand side of the wheel housing.
-
Clamp the cable harness into the hole in the seat mounting front member, and in the rear hole in the horizontal panel at the right-hand side of the
seat. Use tie straps (1) from the kit.
Applies to cars with three rows of seats
-
Guide in a wire or cable (1) at the rear edge of the right-hand side panel and along its inside, above the load securing eyelet brackets.
-
Route the wire/cable to the front edge of the side panel.
