XC90 FWD L6-3.2L VIN 98 B6324S (2007)
-

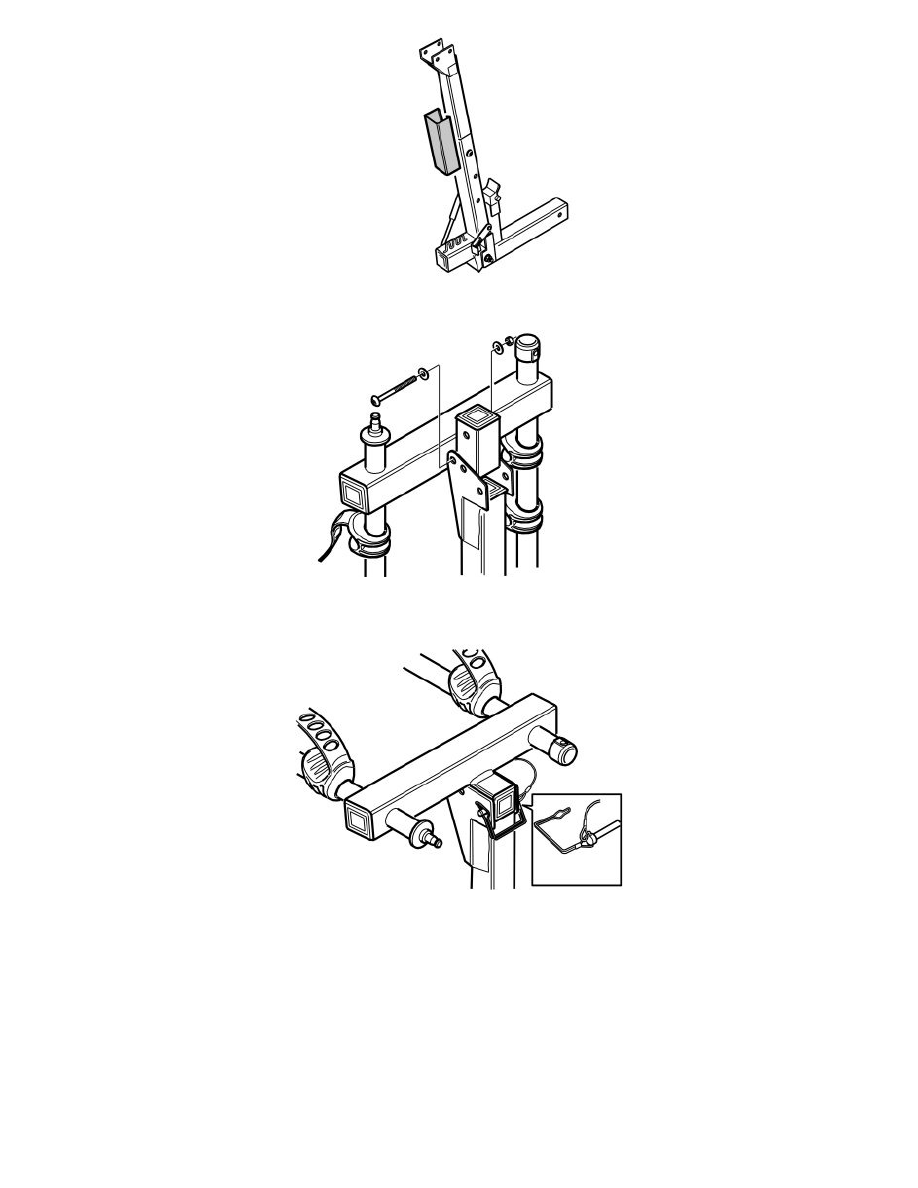

Press the plastic protection onto the vertical mounting in the position illustrated.
-
Install the bicycle carrier on the vertical mounting using screws, flat washers and lock nuts.
-
Tighten the screws and nuts. Do not overtighten so that the bicycle carrier can be tilted in the mounting.
-
Remove the locking bracket from the locking pin and pull it out.
-
Fold the bicycle carrier up, insert the locking pin through the hole and lock using the locking bracket.
