XC90 FWD L6-3.2L VIN 98 B6324S (2007)

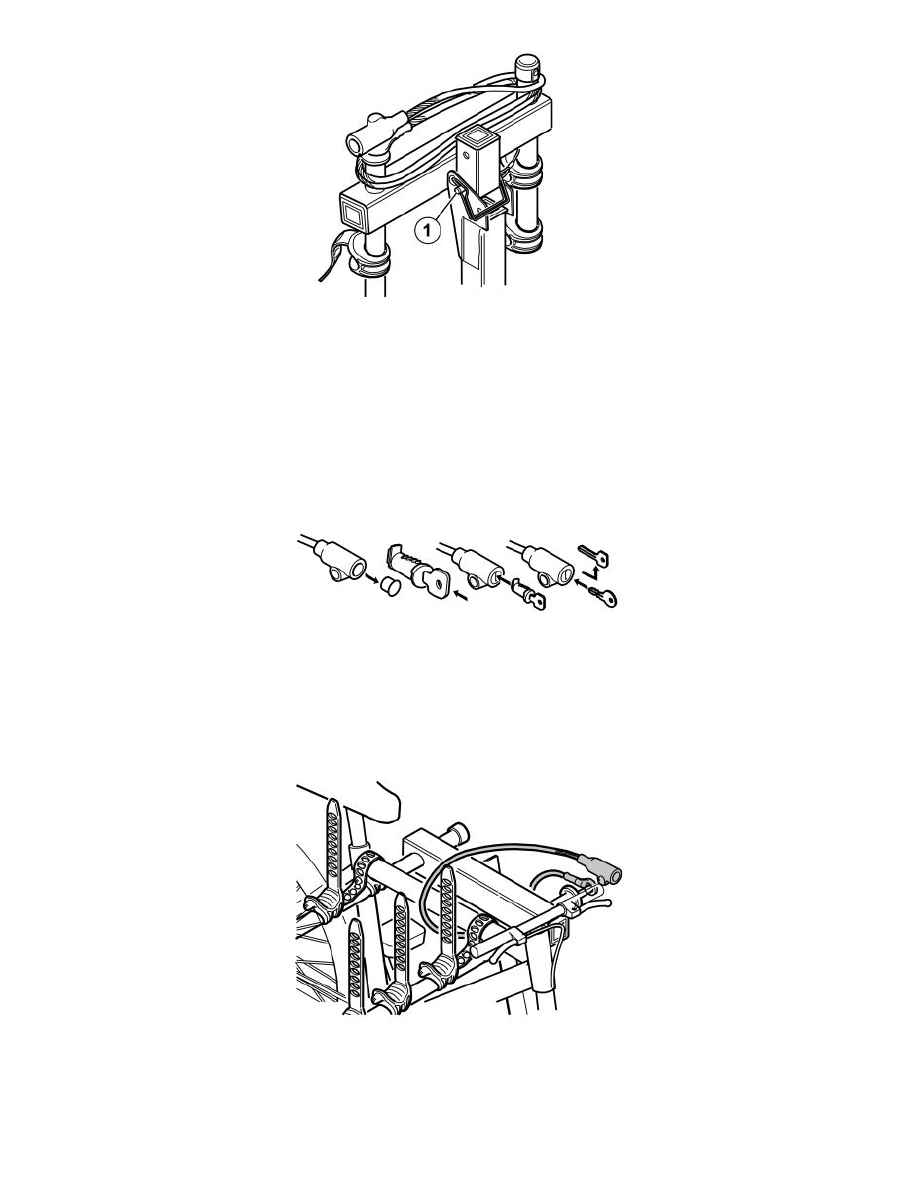

The bicycle carrier can be folded as illustrated when no bicycles are being transported.
-
Detach the locking bracket, pull out the locking pin and fold the bicycle carrier down.
-
Insert the locking pin into the hole (1) and lock with the locking bracket.
Securing bicycles with cable locks
Illustration A
-
Install the lock cylinder to the cable lock as illustrated in image A.
Illustration B
-
Lock the bicycle using the cable lock as illustrated in image B.
Illustration C
