volvo Workshop Repair Guides


XC90 FWD L6-3.2L VIN 98 B6324S (2007)

Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component Information > Diagrams > Diagram Information and Instructions > Page 1952

Page 38
background image

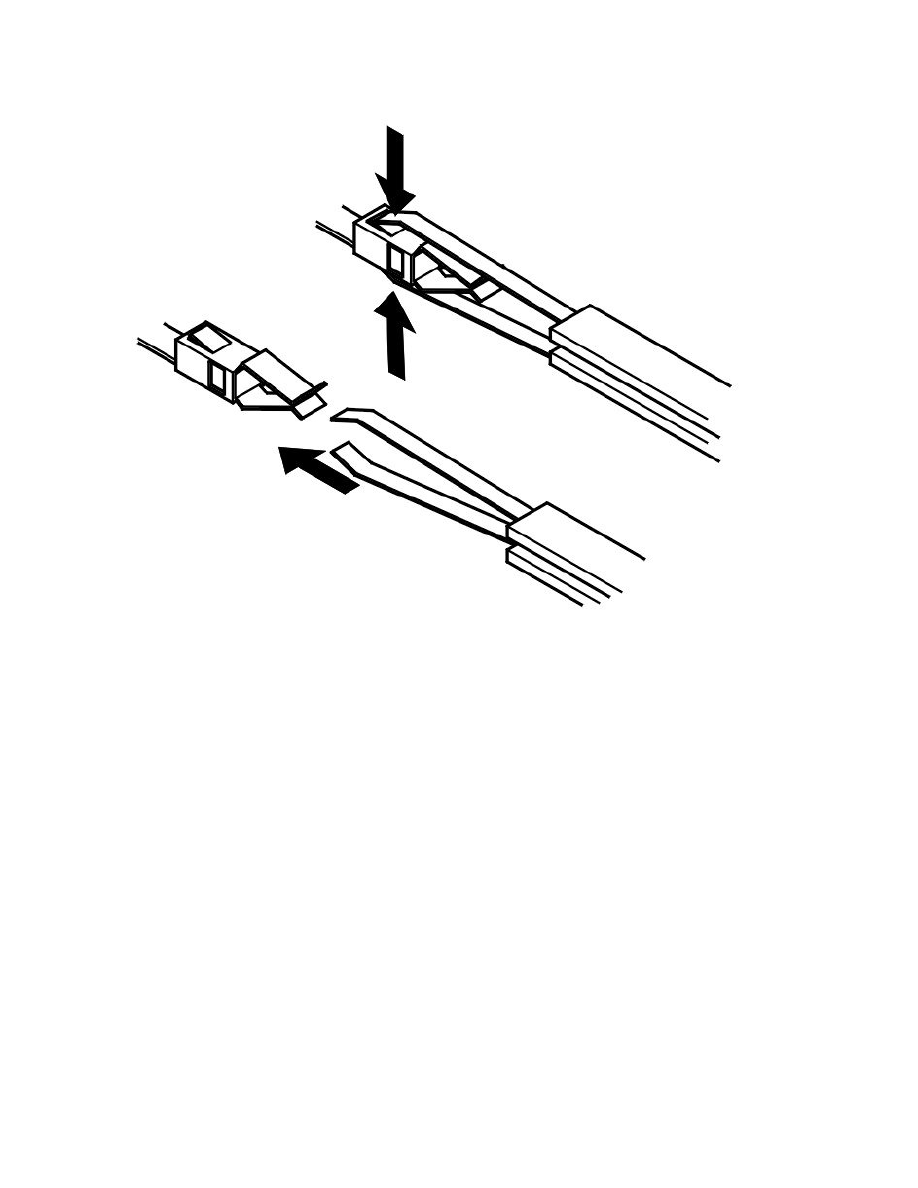

Use tools 951 2630 Terminal removal tool See: Tools and Equipment/951 2630 Terminal Removal Tool and 951 2631 Terminal removal tool See: Tools
and Equipment/951 2631 Terminal Removal Tool to remove the primary lock, as illustrated.
At the same time pull the cable carefully backwards.

Connector, assembling

Note! Wheel sensor cables are twisted pair (positive and negative signal) cables for each wheel. It is important that paired cables are twinned in
the same way when they are reinstalled in the connector. The cables must be twisted approximately 3 times per 100 mm.

Primary lock

Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component Information > Diagrams > Diagram Information and Instructions > Page 1952
