Air Bag Harness: Service and Repair (page 2 of 12)
- Make
- Volvo
- Model
- XC90 FWD
- Engine
- L6-3.2L VIN 98 B6324S
- Year
- 2007
- Section
- Air Bag › Air Bag Harness › Service and Repair
Restraint SystemsProcedures · page 2 of 12
Cut the cables so that there is approximately 40 mm between the splices (centre to centre) (A).

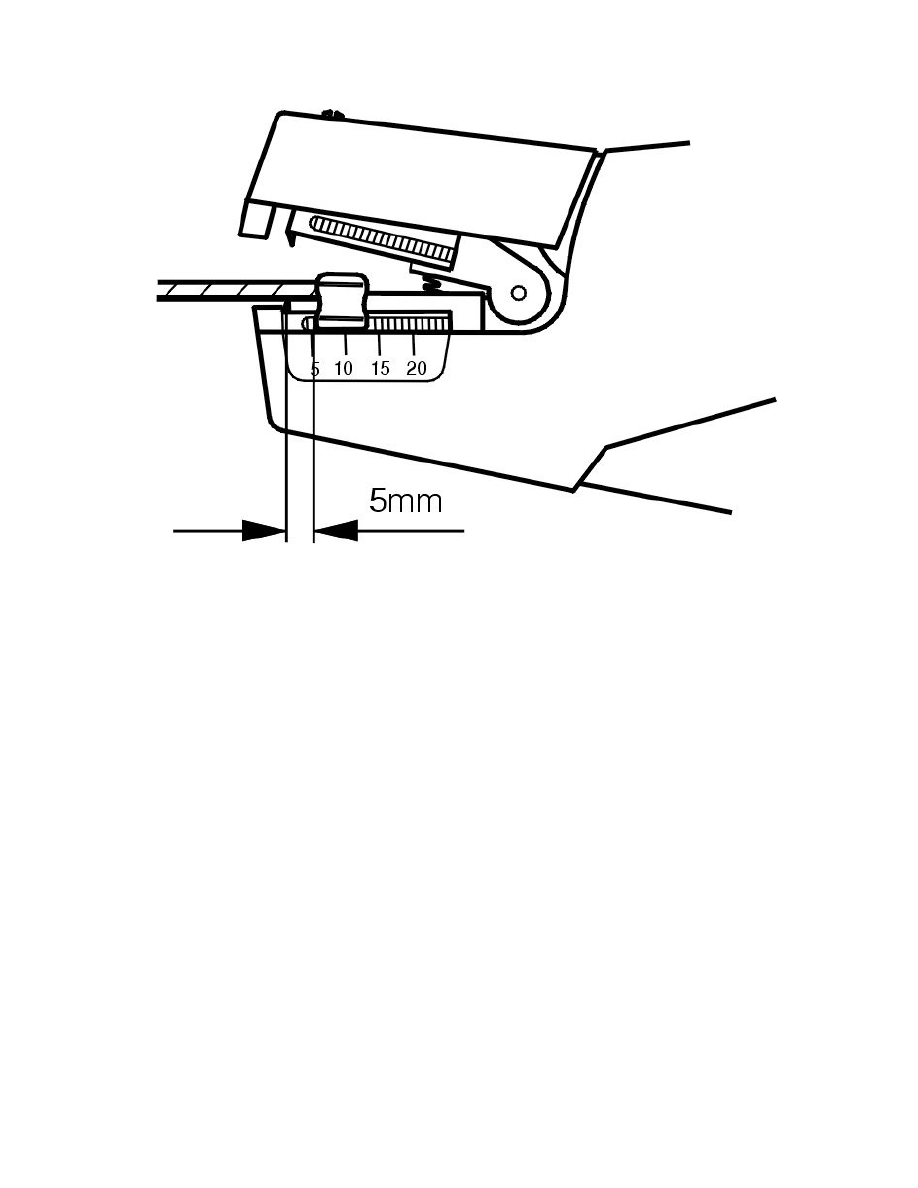

Strip the insulation on the 4 cable ends by 5.0 mm. Use pliers 951 2620 Stripping tool See: Tools and Equipment/951 2620 Stripping Tool.
Twin the cable cores on the stripped ends of the cables.
Caution! Ensure that all the cores are twinned.
Crimping the sleeve
