XC90 FWD L6-3.2L VIN 98 B6324S (2007)

Page 4
background image

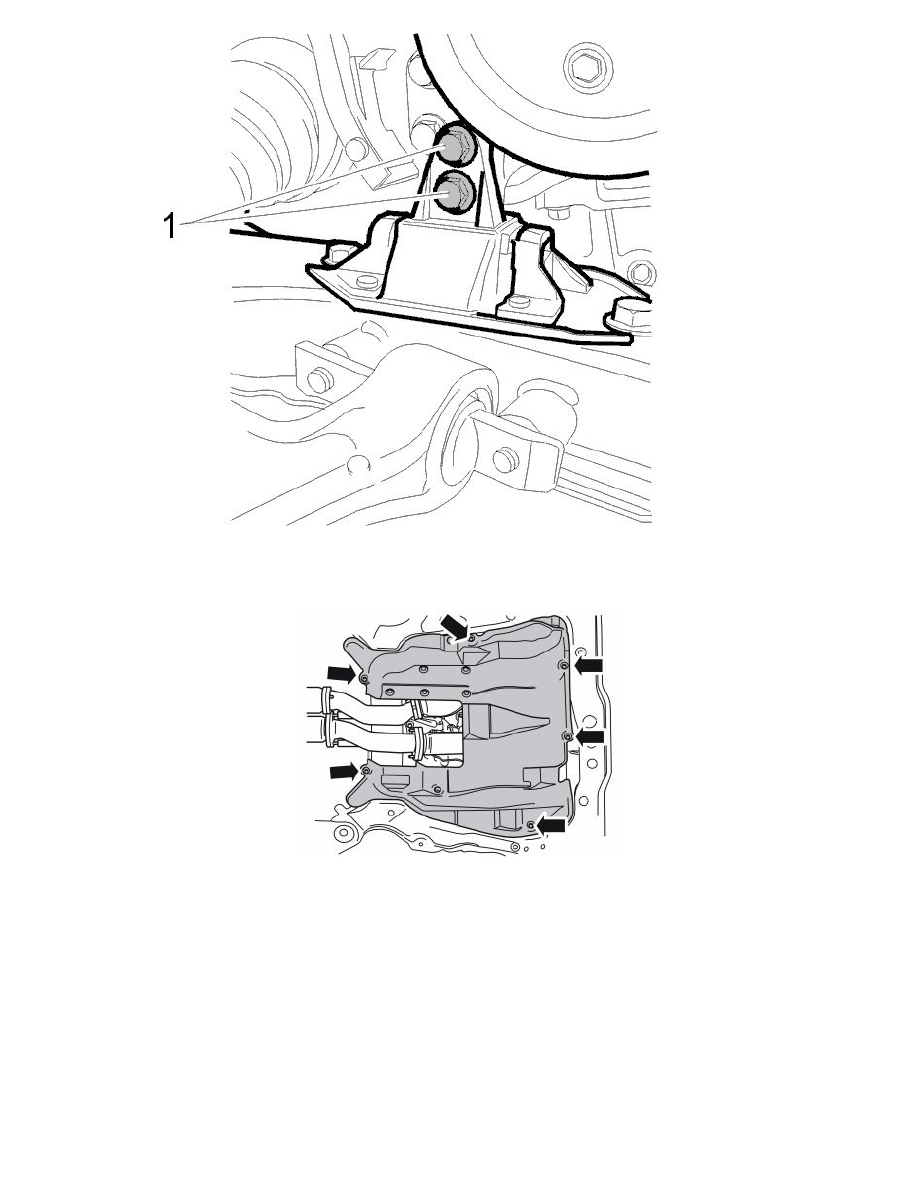

Remove the bolts (1), x2.

Removing the protective cover under the engine

Remove:

-

the bolts, x6

-

the protective cover under the engine.

Removing the exhaust pipes between front and rear catalytic converters
