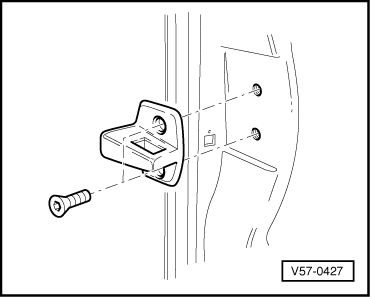

Fig.:1    Adjustment with striker

• ‒ → Release bolts.
• ‒ Move striker until door shell is flush with body contour.
• ‒ Tighten bolts.
  Tightening torque 20 Nm.

Note:

Adjust only towards centre of vehicle; do not adjust height.

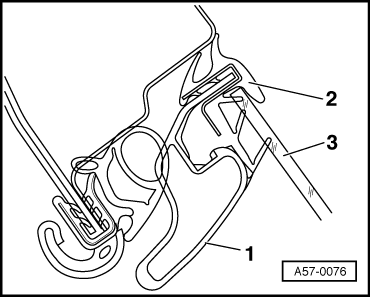

Fig.2    → Adjusting door subframe

• ‒ Front door must be adjusted.
• ‒ Door trim removed.
• ‒ By moving adjuster at bottom of door adjust position of door subframe as shown =>Page 57-4.
• ‒ Sealing lip -2- must fit into contours of pillar -A- and roof frame.
• ‒ In doing so subframe -1- must be slightly displaced towards centre of vehicle (rubber seal provides restoring force).
• ‒ Window -3-.
