• ‒ Removing tailgate interior trims

=> General Body Assembly, Interior; Repair group 70; Trims

• ‒ Remove rear window wiper

=> Electrical System; Repair group 92

• ‒ → Open tailgate and use handle -1- to guide trimming needle beneath sealing lip and pierce adhesive bead.
• ‒ Unscrew handle and insert cutting cord in eye of needle.
• ‒ Pull one end of cutting cord into interior of vehicle; use pliers and wear gloves.

• ‒ Detach sealing lip from window flange with plastic wedge and spray with cleaning fluid
  D009 401 04 (lubricant substitute).
• ‒ → Place other end of cutting cord around window using the insertion tube.

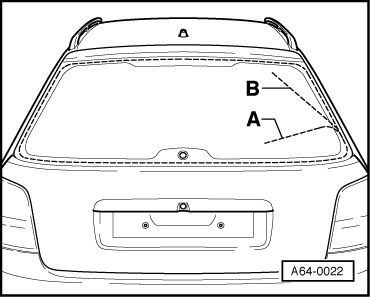

• ‒ → Pull second end of cutting cord -B- into interior of vehicle as shown using trimming needle and handle.
• ‒ Enter end of cutting cord -A- in winding device V.A.G 1654 and secure.

• ‒ → Attach end of cutting cord -B- to tailgate hinge.

• ‒ → Fasten winding device V.A.G 1654 to rear window as shown.
• ‒ Press cutting cord in direction of arrow while cutting along side of window.
• ‒ Cut out window at the bottom.

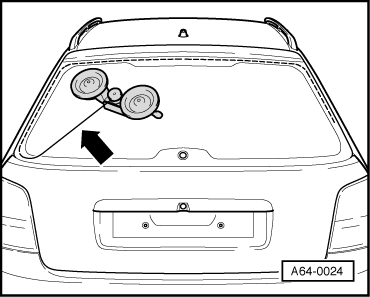

• ‒ → Move winding device and cut out window.
• ‒ Press cutting cord in direction of arrow while cutting along -bottom of window-.
• ‒ Cut out window at the side.

• ‒ Move reel and cut out window.

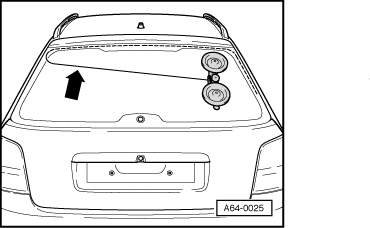

• ‒ → Press cutting cord in direction of arrow while cutting along side of window.
• ‒ Cut out window at the top.

• ‒ Move reel and cut out window.
• ‒ → Press cutting cord in direction of arrow while cutting along top of window.
• ‒ Completely cut out window and remove from tailgate using double suction cups V.A.G 1344.
