• ‒ Remove glove compartment.

=> Inner Body Assembly; Repair group 68

• ‒ Remove series resistor -N24 .

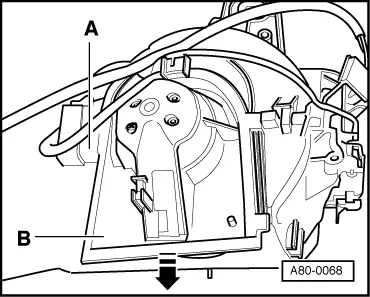

• ‒ → Disconnect connector -A- from fresh air blower.
• ‒ Pull fresh air blower -B- downwards out of heater.

Detaching fresh air blower -V2 from base plate

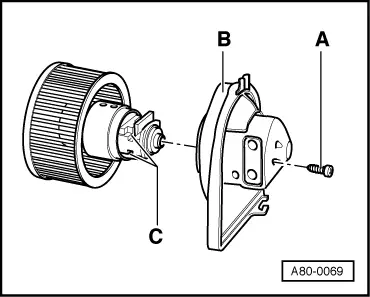

• ‒ → Remove bolt -A-.
• ‒ Pull fresh air blower out of base plate -B-.

Notes:

• ◆ A soundproofing mat can be attached to base plate -B- for noise insulation.
• ◆ When installing the fresh air blower in the base plate, ensure that connectors -C- are correctly positioned.
• ◆ Following installation, ensure that the fresh air blower is properly positioned in the heater.
