A3 Mk1
Heating, ventilation, air conditioning system
Heating, air conditioner
Heating / Servicing heating
Removing and installing "left" and "right" dash panel vent
Heating, Air Conditioner
Servicing heating
Removing and installing "left" and "right" dash panel vent
‒

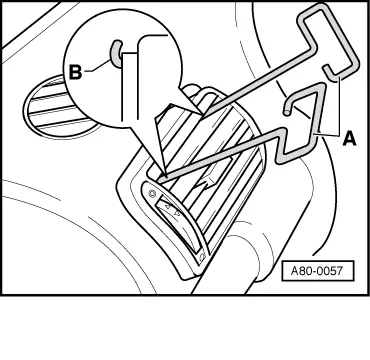

→ Insert auxiliary tools -A- in dash panel vent and withdraw dash panel vent from dash panel.
Note:
Attach hook -B- of the auxiliary tool to the housing rear to prevent damage to the vent.
