A3 Mk1
Power transmission
5-speed manual gearbox 02C, four-wheel drive
Clutch, control / Servicing clutch mechanism
Removing and installing clutch pedal
Removing and installing clutch pedal
Removing and installing clutch pedal
Removing
–
Remove over-centre spring: LHD vehicles
→ Chapter
, RHD vehicles
→ Chapter
.
–
Remove clutch pedal switch
→ Chapter „Removing and installing clutch pedal switch -F36- (square housing)“
or
→ Chapter „Removing and installing clutch pedal switch -F36- (round housing)“
.
–
Separate clutch pedal from master cylinder
→ Chapter
and push operating rod towards bulkhead onto stop.
–

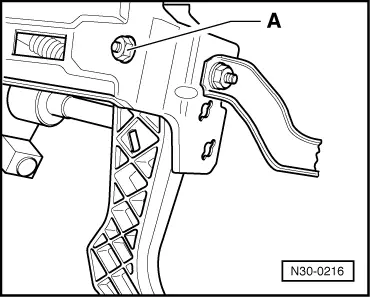

Remove nut
-A-
.
–
Pull bolt out until the clutch pedal can be removed.
Installing
Installation is carried out in reverse sequence; note the following:
–
Install over-centre spring
→ Chapter
.
l

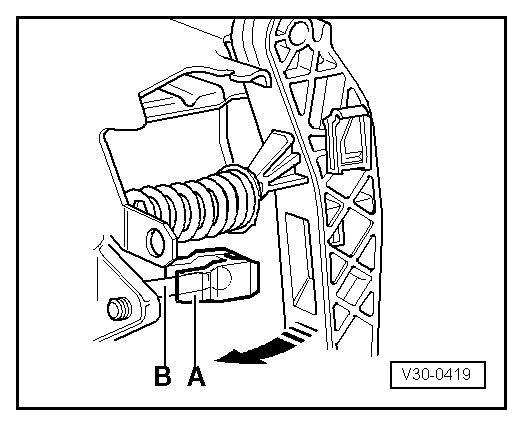

The retaining clip
-A-
must be fitted on the master cylinder operating rod
-B-
.
–
Press clutch pedal in direction of
-arrow-
to engage. Ensure that pedal is correctly located.
–
Install clutch pedal switch
→ Chapter „Removing and installing clutch pedal switch -F36- (square housing)“
or
→ Chapter „Removing and installing clutch pedal switch -F36- (round housing)“
.
