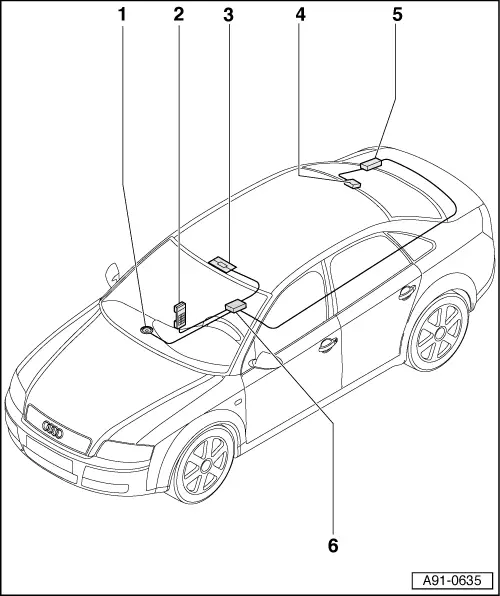

Overview of fitting locations (Saloon) – Audi A4 Mk2
1 - Internal loudspeaker -R70-
q   Vehicles without radio
q   In dash panel (front centre)
q   Removing and installing → Chapter
2 - Telephone bracket -R126-
q   On dash panel (top)
q   Connectors → Chapter
q   Removing and installing → Chapter
q   In centre armrest
q   Removing and installing → Chapter
3 - Telephone microphone -R38-
q   In front interior light -W1-
q   Removing and installing → Chapter
4 - Telephone aerial -R65-
q   Behind roof end trim
q   Removing and installing → Chapter
5 - Aerial amplifier for mobile telephone -R86-
q   Only on vehicles with mobile phone system
q   Behind luggage compartment side trim (right-side)
q   Connectors → Chapter
q   Removing and installing → Chapter
6 - Telephone transmitter and receiver unit -R36-
q   In electronics box under front seat (right-side)
q   Connectors (fixed installation telephone) → Chapter
q   Removing and installing (fixed installation telephone) → Chapter
q   Connectors on mobile telephone operating electronics control unit -J412- → Chapter
q   Connectors (mobile phone pre-installation) → Chapter
q   Removing and installing → Chapter
