Removing and installing contact sensor for front exterior door handle -G605-/-G606-
Removing and installing contact sensor for front exterior door handle -G605-/-G606-
  Caution
Proceed exactly as follows to avoid damaging the sensor.

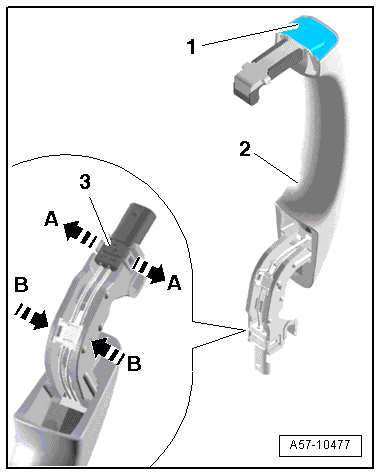

–  Remove door handle -2- with sensor -1- → Chapter.
  A57-10477
–  Use a small screwdriver to carefully release fasteners at -arrows A and B- and press connector -3- with cable guide to side.

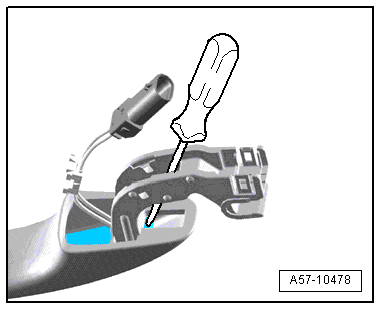

–  Insert screwdriver in front of sensor, as shown.
–  Turning screwdriver slightly, press sensor forwards out of door handle.
–  Pull sensor out of door handle.
  A57-10478
