Removing and installing front brake disc - FN-3 brakes
Removing and installing front brake disc - FN-3 brakes
Detaching
–  Raise the vehicle.
–  Remove wheels.
–  Detach front brake caliper with pads and brake carrier → Chapter.
  WARNING
Do not apply brake when brake caliper is removed.
Do not leave brake caliper and brake carrier hanging from brake hose but secure them to bodywork using a suitable cable tie or wire. Take care that brake hose is not damaged by weight of brake components.

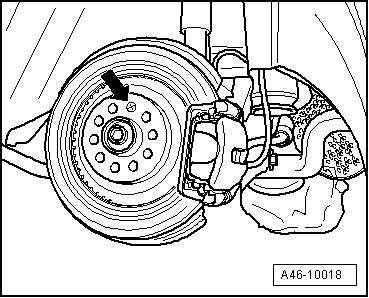

–  Remove locating bolt -arrow- from brake disc, holding brake disc in position.
–  Remove brake disc.
  Note
Take care to keep the brake disc straight when taking it off the wheel hub.
Installing
Clean brake disc, wheel hub and contact surfaces before installing.
–  Fit brake disc onto wheel hub.
  Note
Take care to keep the brake disc straight when fitting it onto the wheel hub.
  A46-10018
–  Screw in locating bolt -arrow- and tighten.
–  Install front brake caliper with pads and brake carrier → Chapter.
–  Fit wheels.
Tightening torque for wheel bolts → Rep. gr.44
  A46-10018
