Exploded view - selector lever cable > < Detaching selector lever boot from selector lever handle

A4 Mk3

Removing and installing selector lever position displayY26
Removing and installing selector lever position display -Y26-

Removing
–  Pull up parking brake button to apply electromechanical parking brake.
–  Shift selector lever to position „S“.

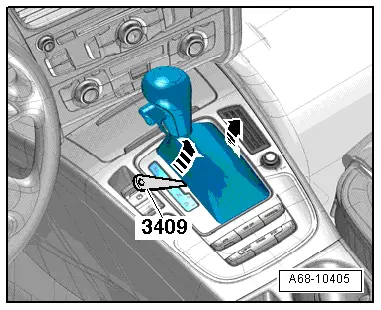

–  Carefully pry out selector lever boot at the side in direction of -arrows- using removal wedge -3409- and turn selector lever boot inside out over selector lever handle.
  A68-10405
–  Release retaining spring -2- and detach selector lever position display -Y26--item 1--arrow-.
–  Unplug electrical connector.
Installing
Perform installation in reverse sequence of removal.
  A96-10070
