Removing and installing selector lever handle > < Removing and installing shift unit

A4 Mk3

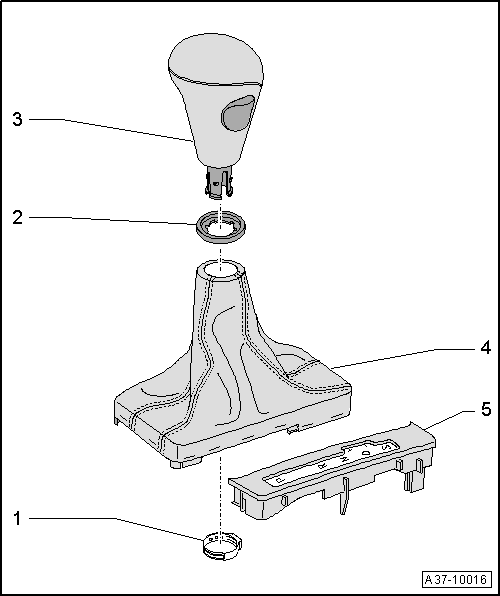

Exploded view - selector lever handle, selector lever position displayY26
Exploded view - selector lever handle, selector lever position display -Y26-
Overview:
t  → Chapter „Removing and installing selector lever handle“
t  → Chapter „Detaching selector lever boot from selector lever handle“
t  → Chapter „Removing and installing selector lever position display -Y26-“

1 - Clamp
q   Secures selector lever handle to selector lever
q   Renew
q   Removing and installing → Chapter „Removing and installing selector lever handle“
2 - Trim ring
q   Removing and installing → Chapter „Detaching selector lever boot from selector lever handle“
3 - Selector lever handle
q   → Chapter „Removing and installing selector lever handle“
4 - Selector lever boot
q   → Chapter „Detaching selector lever boot from selector lever handle“
5 - Selector lever position display -Y26-
q   → Chapter „Removing and installing selector lever position display -Y26-“



Removing and installing selector lever handle > < Removing and installing shift unit
