Removing and installing telephone transmitter and receiver unitR36
Removing and installing telephone transmitter and receiver unitR36
Removing and installing telephone transmitter and receiver unit -R36-
The telephone transmitter and receiver unit -R36- is located beneath front seat (right-side).
Special tools and workshop equipment required
t

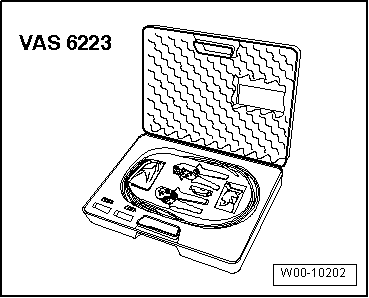

Protective cap for cable connector -VAS 6223/9-
–
Switch off all electrical equipment.
–
Remove ignition key.
–
When renewing control unit, select „Replacement“ function for appropriate control unit in „Guided Fault Finding“.
To do so, use
→ Vehicle diagnostic tester
.
Removing
–
Remove front seat (right-side)
→ General body repairs, interior; Rep. gr.72
.
–
Fold back floor covering
→ General body repairs, interior; Rep. gr.70
.
–
Release electronics box cover
-2-
and open electronics box
-1-
.
The telephone transmitter and receiver unit -R36- is only wedged in the electronics box.
–
Pry telephone transmitter and receiver unit -R36-
-5-
out of electronics box
-4-
.
Applies to MOST bus only
–
Release and unplug connector
-2-
.
–

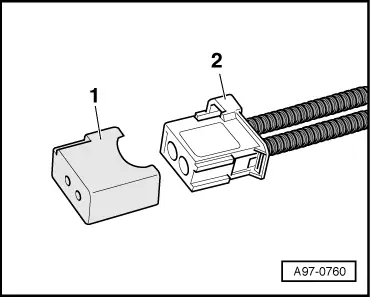

Fit protective cap for cable connector -VAS 6223/9-
-1-
onto MOST bus connector
-2-
.
All versions
–
Release and unplug connector
-3-
.
–
Unplug aerial for Bluetooth -R152-
-1-
.
Installing
–
Install in reverse sequence of removal.
–
Readapt Bluetooth connection between telephone transmitter and receiver unit -R36- and telephone handset -R36- / mobile telephone -R54-.
Exploded view
→ Chapter
