A4 Mk3

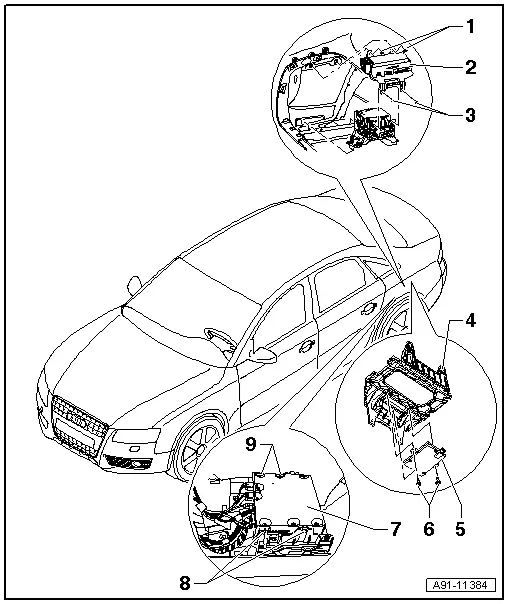

| Overview (from week 45/08 onwards) |
| 1 - | Nut |
| q | 3.5 Nm |
| 2 - | Bracket |
| 3 - | Bolt |
| q | 3.5 Nm |
| 4 - | Bracket |
| 5 - | TV card reader -R204- |
| q | Removing and installing (from week 45/08 onwards) → Chapter |
| 6 - | Bolt |
| q | 2 Nm |
| 7 - | TV tuner -R78- |
| q | Pin assignment → Chapter |
| q | Removing and installing (from week 45/08 onwards) → Chapter |
| - Digital TV tuner -R171- (from model year 2013 onwards) |
| q | Pin assignment → Chapter |
| q | Removing and installing (from model year 2013 onwards) → Chapter |
| 8 - | Bolt |
| q | 2 Nm |
| 9 - | Bolt |
| q | 2 Nm |
