Removing and installing mounting for CAN isolating connector (dash panel)T46s > < Removing and installing fuse carrier in dash panel (right-side)

A4 Mk3

Removing and installing CAN isolating connector (dash panel)T46s
Removing and installing CAN isolating connector (dash panel) -T46s-
Special tools and workshop equipment required

t  Removal wedge -3409-
  W00-0016
Removing
–  Switch off ignition and take out ignition key.

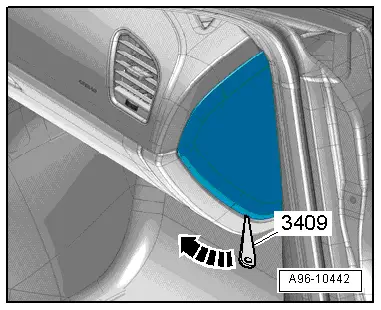

–  Lever side cover off dash panel with removal wedge -3409--arrow- and detach.
  A96-10442

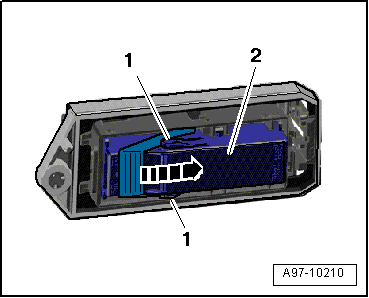

–  Press in retaining tabs -1- and release retaining clip -arrow-.
–  Remove CAN isolating connector (dash panel) -T46s--item 2-.
  Note
Exact contact assignment of CAN isolating connector (interior) can be found in appropriate current flow diagram → Current flow diagrams, Electrical fault finding and Fitting locations.
Installing
Install in reverse order.
  A97-10210
