Halogen headlights - vehicles from 11.2008 onwards
Renewing front turn signal bulb M5/M7
Renewing front turn signal bulb -M5-/-M7-
Removing
–
Remove headlight housing
→ Chapter
.
–
Detach housing cover
-1-
for main beam headlight from headlight housing
-arrow-
.
–

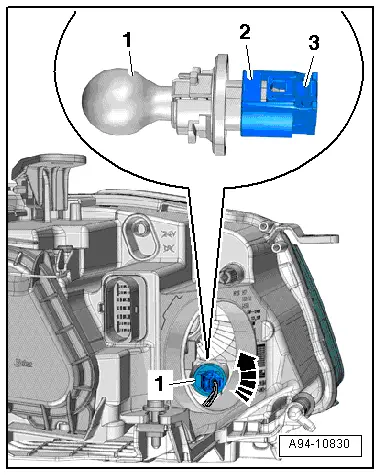

Turn bulb
-1-
anti-clockwise
-arrow-
and pull it out of housing.
–
Release retaining spring
-3-
and unplug electrical connector
-2-
at bulb.
Installing
Installation is carried out in the reverse order; note the following:
–
Insert new bulb in housing; do not touch glass part of bulb with bare hands.
–
Close housing cover
-1-
and make sure tab
-2-
and mark
-3-
on headlight housing align.
–
Install headlight housing
→ Chapter
.
