Removing and installing rear side marker light bulb M37/M38
Removing and installing rear side marker light bulb -M37-/-M38-

Removing
–  Remove outer tail light cluster → Chapter.

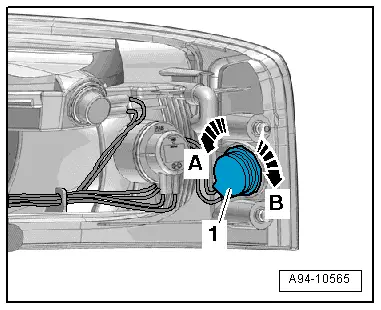

–  Turn bulb holder -1- for left side marker light in anti-clockwise direction -arrow A-, for right side marker light in clockwise direction -arrow B- and pull out of tail light cluster.
Installing
Installation is carried out in the reverse order; note the following:
  Note
Entire wiring harness must be renewed if LED is defective.
–  Install outer tail light cluster → Chapter.
  A94-10565
