Removing and installing rear parking aid warning buzzerH15 - 5-door models
Removing and installing rear parking aid warning buzzer -H15- - 5-door models

Removing
–  Switch off ignition and take out ignition key.
–  Remove belt guide (rear right) → Rep. gr.69.

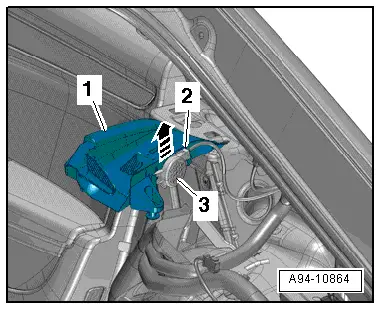

–  Pull out rear parking aid warning buzzer -H15--item 3- at belt guide (right-side) -1- in direction of -arrow-.
–  Unplug electrical connector -2-.
Installing
Installation is carried out in the reverse order; note the following:
–  Install belt guide (rear right) → Rep. gr.69.
  A94-10864
