X Series E83 X3 3.0i (M54) OFFRD

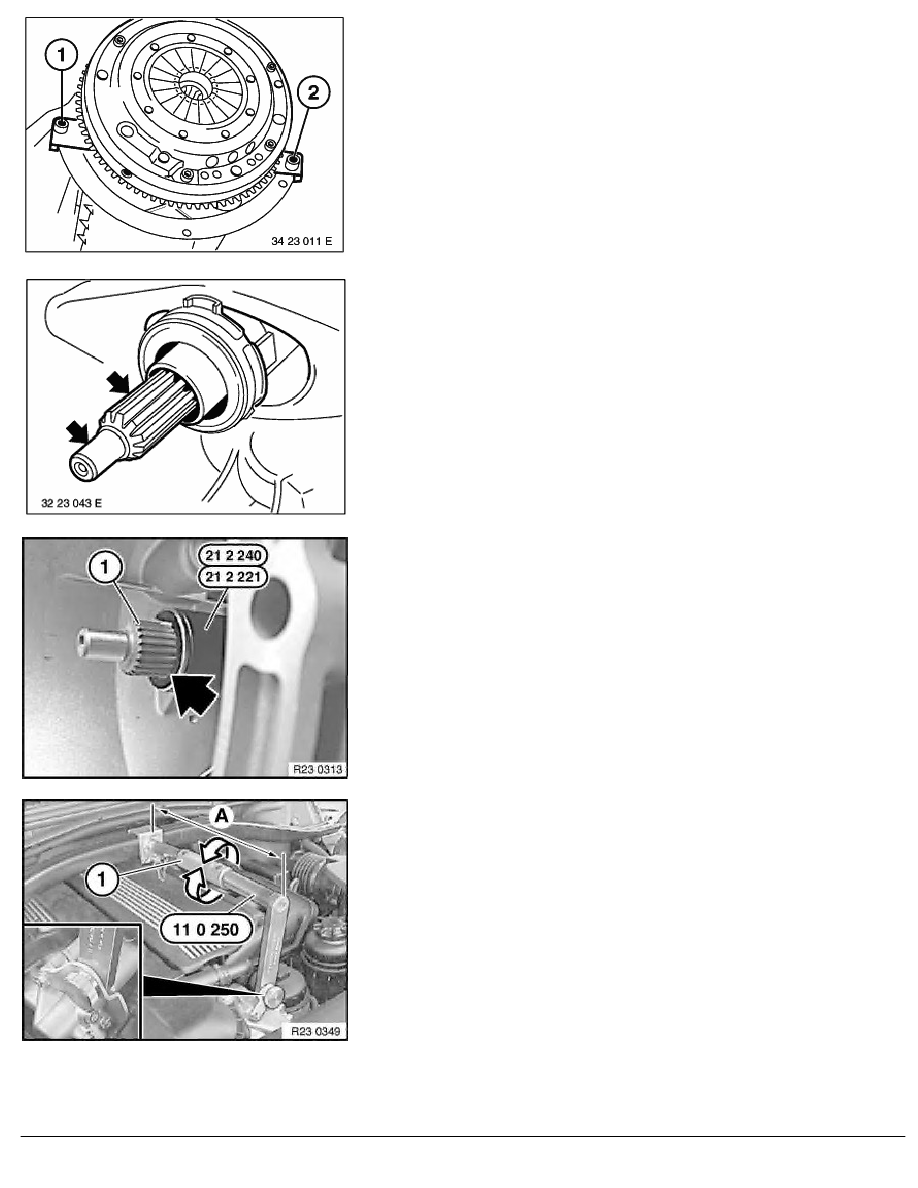

Installation:
Check that dowel sleeves are correctly seated.
Replace damaged dowel sleeves.
Ensure correct position of cover plate.
Installation:
Check lubrication of transmission input shaft for sticky
consistency. If grease is sticky, clean input shaft and replace
clutch plate.
Check clutch plate for friction rust in splines and replace if
necessary.
Mechanically remove existing grease and lining abrasion from
splines of clutch plate (with a cloth).
Installation:
Greasing specification:
-
Remove and clean release bearing and release lever.
-
Push on grease scraper ring 21 2 221 as far as it will go.
-
Grease splines (1) of input shaft with a brush. Refer to BMW
Service Operating Fluids.
-
Detach grease scraper ring.
Installation:
Before installing transmission cross-member, turn special tool
11 0 250 back with adjusting screw (1) to measurement "A"
(installation position).
Installation position, measurement "A" = 36 cm.
