Focus L4-2.0L DOHC VIN 5 (2003)

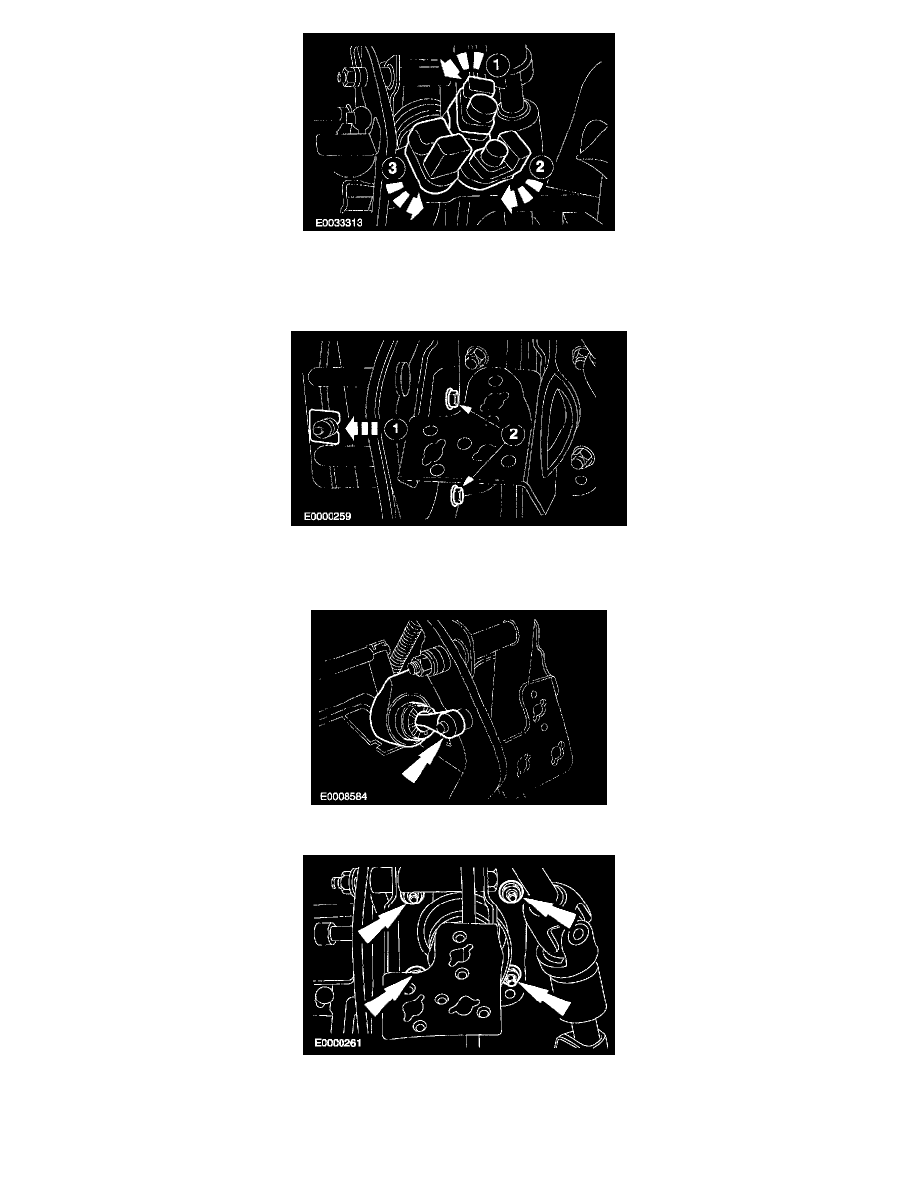

4. Remove the pedal position switches.
1
Speed control deactivation switch (colored green) (if equipped).
2
Stop lamp switch (colored grey).
3
Clutch position switch (colored red).
5. Detach the clutch master cylinder from the pedal bracket (clutch position switch bracket shown removed for clarity).
1
Remove the clip.
2
Remove the bolts.
6. Detach the clutch master cylinder actuating rod from the clutch pedal.
7. Remove the brake booster retaining nuts (clutch position switch bracket shown removed for clarity).
