X-Type (X400) V6-3.0L (2002)
Heating and Air Conditioning
Evaporator Case / Component Information
Service and Repair / Removal and Installation
Page 5526
Page 4

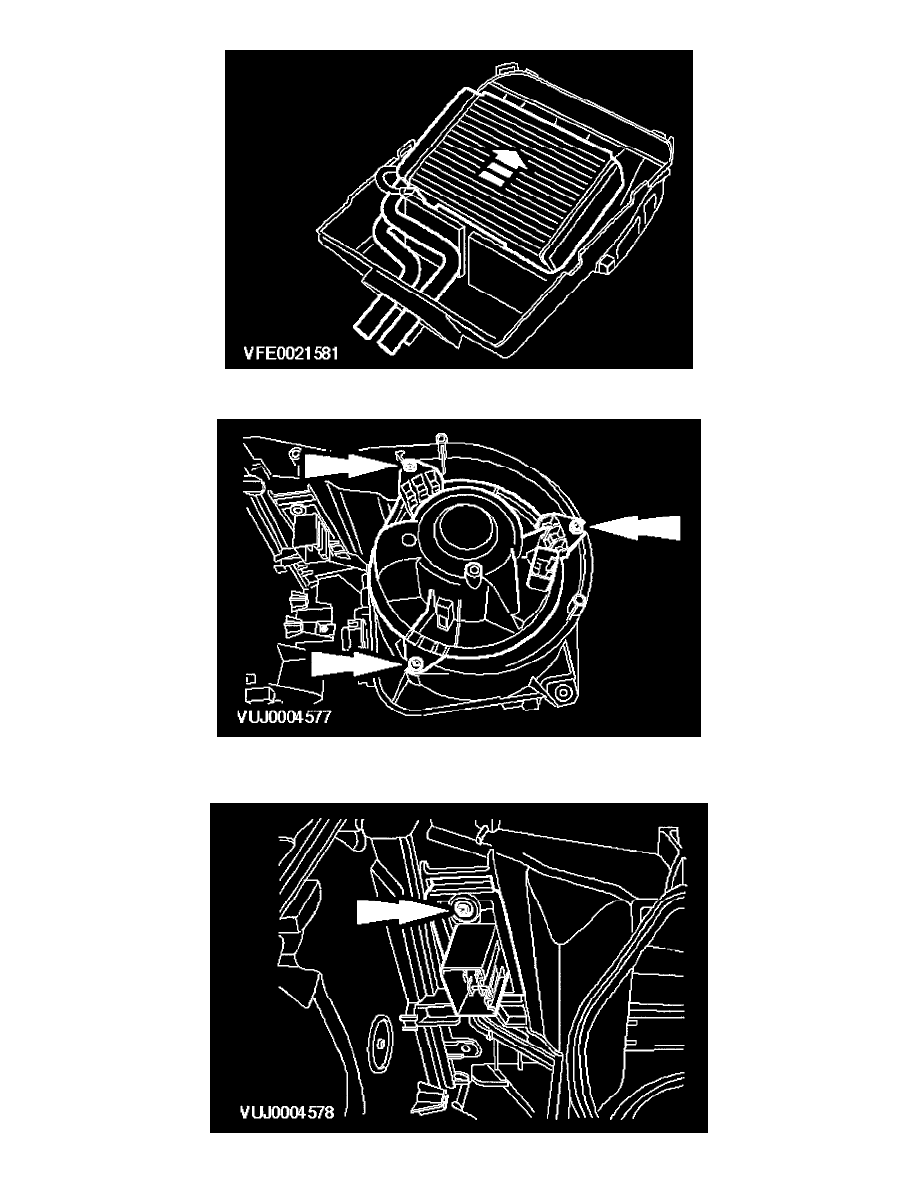

9. Remove the heater core.
10. Remove the blower motor.
-
Remove the blower motor retaining screws.
Heating and Air Conditioning
Evaporator Case / Component Information
Service and Repair / Removal and Installation
Page 5526
